DCEC Engine Models

DCEC Engine Company is a 50:50 equity ratio joint venture between between CMS and Dongfeng Motor Company that established in the year 0f 1996.
DCEC Engine Co., Ltd. mainly produces DCEC B, C, D, L, Z series mechanical and electronic engines, the engine displacement is covering 3.9 L, 4.5 L, 5.9 L, 6.7 L, 8.3 L, 8.9 L, 13 L, with the power coverage is from 19 kw to 562 kW.
DCEC engines can meet up to EURO Stage VI emission regulations, and widely used in light, medium and heavy trucks, large and medium-sized buses, industrial machinery, marine, generator sets, water pump set and railways.



Find Engines by Series

This is the list of all DCEC engines series for automotive, industrial, pump set, generator drive and marine applications. Click here to find engines by type

Automotive Engine

EQB / B Automotive		123-235 HP
C Automotive			220-325 HP
L Automotive				300-375 HP
L9NS6 Automotive			276-423 HP

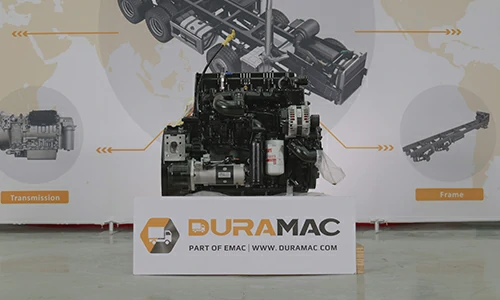

D4.0NS6 Automotive		147-191 HP

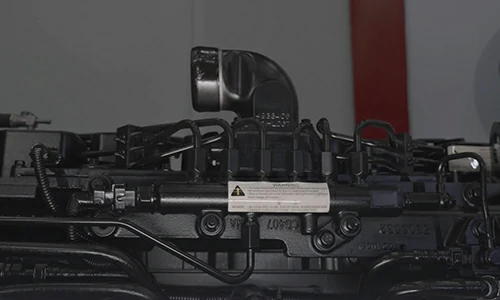

ISB3.9S4 Automotive		123-158 HP

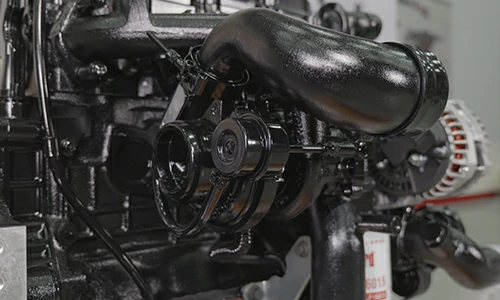

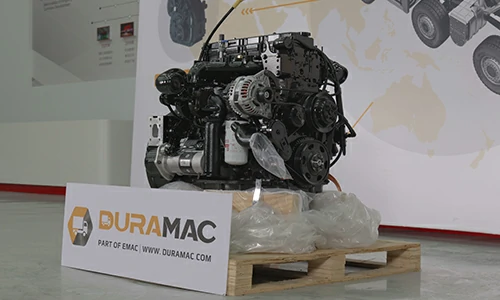

ISD4.5 Automotive		138-217 HP
ISD6.7 Automotive		207-289 HP
ISF2.8 Automotive		130-150 HP
ISF3.8 Automotive		153-168 HP
ISL8.9 Automotive			260-394 HP
ISL9.5 Automotive			288-419 HP

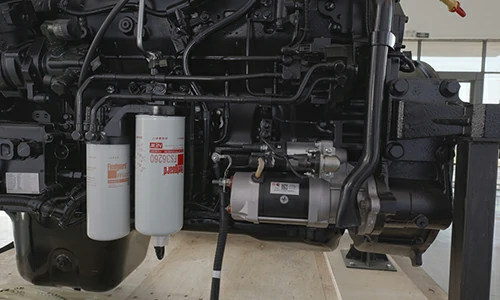

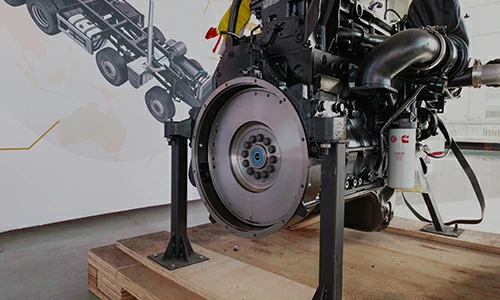

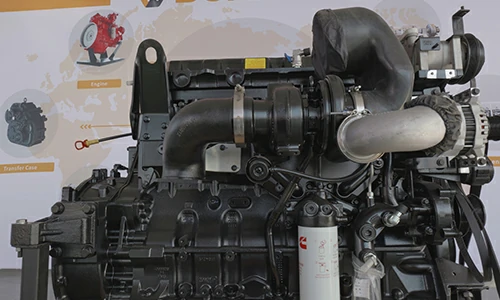

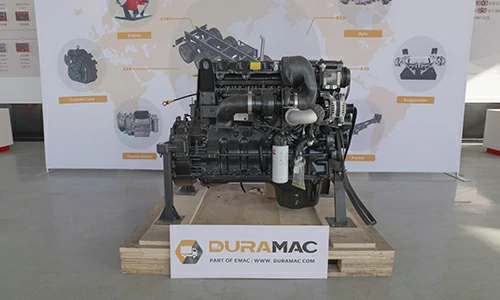

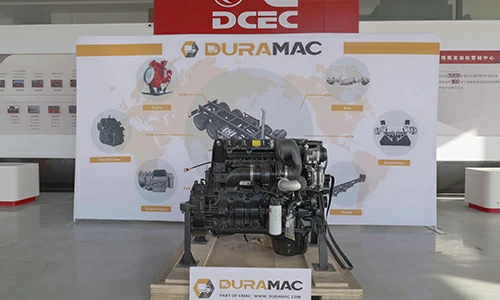

ISZ13 Automotive					424-525 HP
ISM11 Automotive				380-420 HP

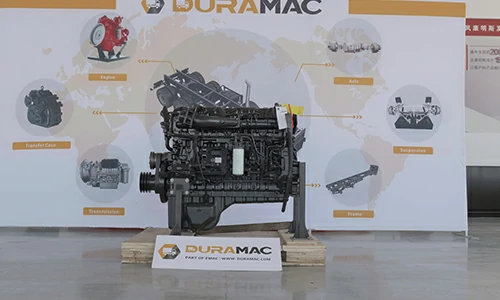

Z14NS6 Automotive					480-591 HP

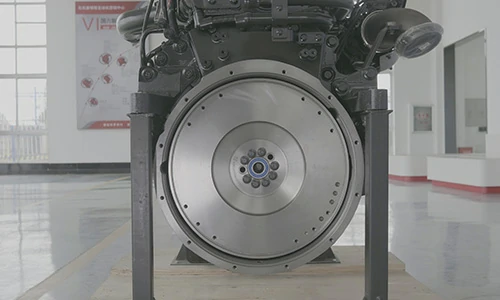

Z15NS6 Automotive						591-650 HP
Engine Model Power/HP	0	100	200	300	400	500	600	700
	Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ

DCEC Automotive Engine Catalogue

Series

Model

EQB / B 1000 mm * 800 mm * 1100 mm Euro II – Euro III	B140-33 \| 140 HP @ 2500 RPM	B170-33 \| 170 HP @ 2500 RPM	B190-33 \| 190 HP @ 2500 RPM	B210-33 \| 210 HP @ 2500 RPM
	EQB125-20 \| 125 HP @ 2800 RPM	EQB140-20 \| 140 HP @ 2700 RPM	EQB160-20 \| 160 HP @ 2500 RPM	EQB170-21 \| 170 HP @ 2500 RPM
	EQB180-20A \| 180 HP @ 2500 RPM	EQB180-20B \| 180 HP @ 2500 RPM	EQB190-20 \| 190 HP @ 2800 RPM	EQB190-21 \| 190 HP @ 2500 RPM
	EQB210-20A \| 210 HP @ 2500 RPM	EQB210-20B \| 210 HP @ 2500 RPM	EQB235-20 \| 235 HP @ 2500 RPM
C 1350 mm * 1100 mm * 1400 mm Euro II	C220-10A \| 220 HP @ 2400 RPM	C220-10B \| 220 HP @ 2400 RPM	C230-10 \| 230 BHP @ 2400 RPM	C230-20 \| 230 HP @ 2200 RPM
	C240-10 \| 240 BHP @ 2400 RPM	C245-20A \| 241 BHP @ 2400 RPM	C245-20B \| 243 HP @ 2200 RPM	C260-20 \| 260 HP @ 2500 RPM
	C260-33 \| 260 HP @ 2200 RPM	C280-20 \| 280 HP @ 2200 RPM	C300-20A \| 300 HP @ 2200 RPM	C300-20B \| 300 HP @ 2200 RPM
	C325-20 \| 325 HP @ 2200 RPM
L 1300 mm * 900 mm * 1100 mm Euro II	L300-20 \| 300 HP @ 2200 RPM	L325-20 \| 325 HP @ 2200 RPM	L340-20 \| 340 HP @ 2200 RPM	L340-30 \| 340 HP @ 2200 RPM
L 1300 mm * 900 mm * 1100 mm Euro II	L360-20 \| 360 HP @ 2200 RPM	L360-30 \| 360 HP @ 2200 RPM	L375-30 \| 375 HP @ 2200 RPM
L9NS6 1157 mm * 944 mm * 1070 mm Euro V	L9NS6B280 \| 276 HP @ 1900 RPM	L9NS6B315 \| 311 HP @ 1900 RPM	L9NS6B340 \| 335 HP @ 1900 RPM	L9NS6B360 \| 355 HP @ 1900 RPM
L9NS6 1157 mm * 944 mm * 1070 mm Euro V	L9NS6B400 \| 394 HP @ 1900 RPM	L9NS6B400-II \| 394 HP @ 1900 RPM	L9NS6B430 \| 423 HP @ 2100 RPM

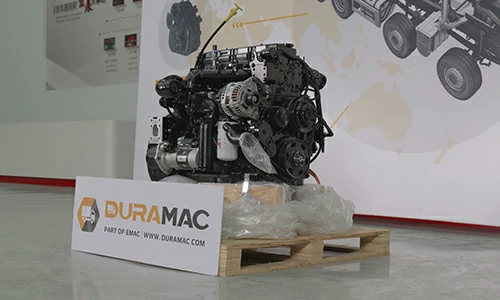

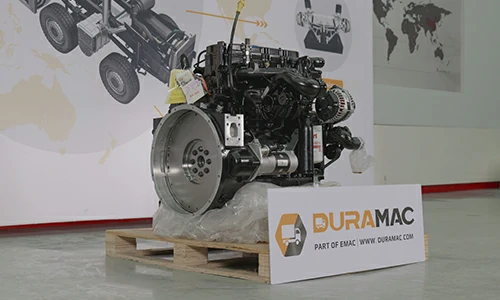

D4.0NS6 816 mm * 807 mm * 852 mm Euro V	D4.0NS6B150 \| 147 HP @ 2400 RPM	D4.0NS6B160 \| 158 HP @ 2400 RPM	D4.0NS6B170 \| 167 HP @ 2400 RPM	D4.0NS6B185 \| 182 HP @ 2400 RPM

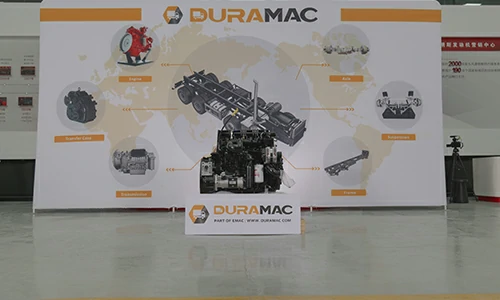

D4.0NS6 816 mm * 807 mm * 852 mm Euro V	D4.0NS6B195 \| 191 HP @ 2400 RPM	D4.0NS6B195-II \| 191 HP @ 2400 RPM

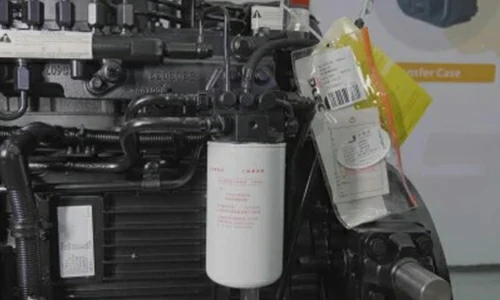

ISB3.9S4 816 mm * 807 mm * 852 mm Euro III	ISB3.9-125E40A \| 123 HP @ 2500 RPM	ISB3.9-140E40A \| 136 HP @ 2500 RPM	ISB3.9-160E41A \| 158 HP @ 2500 RPM

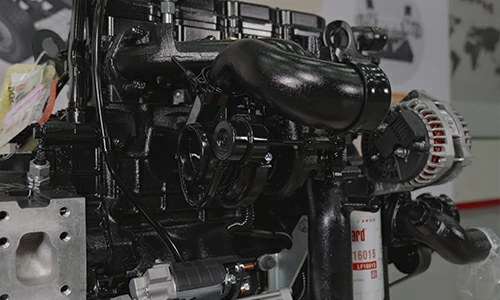

ISD4.5 755 mm * 678 mm * 852 mm Euro III – Euro V	ISDe140 30 \| 138 HP @ 2500 RPM	ISDe140-30B \| 140 HP @ 2500 RPM	ISDe140 41 \| 138 HP @ 2300 RPM	ISDe140 51 \| 138 HP @ 2300 RPM
	ISDe160 30 \| 158 HP @ 2500 RPM	ISDe160 30A \| 160 HP @ 2700 RPM	ISDe160 30B \| 160 HP @ 2700 RPM	ISDe160 30-II \| 158 HP @ 2700 RPM
	ISDe160 31 \| 158 HP @ 2500 RPM	ISDe160 41 \| 158 HP @ 2300 RPM	ISDe160 51 \| 158 HP @ 2300 RPM	ISDe180 30 \| 182 HP @ 2500 RPM
	ISDe180-30 \| 185 HP @ 2700 RPM	ISDe180 30-II \| 182 HP @ 2500 RPM	ISDe180 40 \| 177 HP @ 2500 RPM	ISDe185-30A \| 182 HP @ 2500 RPM
	ISDe185-30B \| 185 HP @ 2500 RPM	ISDe185 31 \| 185 HP @ 2500 RPM	ISDe185 41 \| 185 HP @ 2500 RPM	ISDe185 51 \| 182 HP @ 2300 RPM
	D4.5NS6B190 \| 187 HP @ 2300 RPM	ISDe200-30 \| 200 HP @ 2300 RPM	D4.5NS6B210 \| 206 HP @ 2300 RPM	D4.5NS6B220 \| 217 HP @ 2300 RPM
ISD6.7 1021 mm * 723 mm * 985 mm Euro III – Euro VI	ISDe210-30A \| 207 HP @ 2500 RPM	ISDe210-30B \| 210 HP @ 2500 RPM	ISDe230-30 \| 226 HP @ 2500 RPM	ISDe245-30 \| 241 HP @ 2500 RPM
	ISDe270-30A \| 266 HP @ 2500 RPM	ISDe270-30B \| 281 HP @ 2500 RPM	ISDe285-30 \| 281 HP @ 2500 RPM	ISDe285-50 \| 281 HP @ 2500 RPM
	D6.7NS6B260 \| 256 HP @ 2300 RPM	D6.7NS6B290 \| 289 HP @ 2300 RPM
ISF2.8 800 mm * 700 mm * 800 mm Euro III – Euro VI	ISF2.8s3129T \| 130 HP @ 3200 RPM	ISF2.8s4129T \| 130 HP @ 3200 RPM	ISF2.8s4148T \| 150 HP @ 3200 RPM
ISF3.8 1000 mm * 800 mm * 900 mm Euro III – Euro VI	ISF3.8s3154 \| 153 HP @ 2600 RPM	ISF3.8s4R168 \| 168 HP @ 2600 RPM
ISL8.9 1396 mm * 1049 mm * 1232 mm Euro III – Euro V	ISLe270 30 \| 269 HP @ 2100 RPM	ISLe290 30 \| 285 HP @ 2100 RPM	ISLe290-30 \| 289 HP @ 2100 RPM	ISLe290 40 \| 285 HP @ 2100 RPM
	ISLe290 50 \| 285 HP @ 2100 RPM	ISLe292 40 \| 288 HP @ 2100 RPM	ISLe292 50 \| 285 HP @ 2100 RPM	ISLe310 30 \| 305 HP @ 2100 RPM
	ISLe310-30 \| 309 HP @ 2100 RPM	ISLe315 40 \| 311 HP @ 2100 RPM	ISLe315 50 \| 315 HP @ 2100 RPM	ISLe325 40 \| 320 HP @ 2100 RPM
	ISLe325 50 \| 324 HP @ 2100 RPM	ISLe340 30 \| 335 HP @ 2100 RPM	ISLe340-30 \| 340 HP @ 2100 RPM	ISLe340 40 \| 335 HP @ 2100 RPM
	ISLe340 50 \| 340 HP @ 2100 RPM	ISLe360 40 \| 335 HP @ 2100 RPM	ISLe360 50 \| 359 HP @ 2100 RPM	ISLe375 30 \| 368 HP @ 2100 RPM
	ISLe375 30-II \| 368 HP @ 2100 RPM	ISLe375-30 \| 375 HP @ 2100 RPM	ISLe375-40 \| 315 HP @ 2100 RPM	ISLe375 50 \| 375 HP @ 2100 RPM
	ISLe380 50 \| 379 HP @ 2100 RPM	ISLe400 40 \| 394 HP @ 2100 RPM	ISL8.9-292E50A \| 288 HP @ 2100 RPM	ISL8.9-315E50A \| 311 HP @ 2100 RPM
	ISL8.9-340E51A \| 337 HP @ 2100 RPM	ISL8.9E5280B \| 280 HP @ 2100 RPM	ISL8.9E5320B \| 260 HP @ 2500 RPM	ISL8.9E5340B \| 335 HP @ 2100 RPM
ISL9.5 1147 mm * 767 mm * 1106 mm Euro VI – Euro V	LK290 33 \| 296 HP @ 2000 RPM	LK340 33 \| 343 HP @ 2000 RPM	LK340 33-II \| 337 HP @ 2000 RPM	ISL9.5-292E40A \| 288 HP @ 1900 RPM
	ISL9.5-292E40A-ll \| 288 HP @ 1900 RPM	ISL9.5-292E42A \| 288 HP @ 1900 RPM	ISL9.5-292E43A \| 288 HP @ 1900 RPM	ISL9.5-315E40A \| 311 HP @ 1900 RPM
	ISL9.5-315E40A-II \| 311 HP @ 1900 RPM	ISL9.5-315E43A \| 351 HP @ 1900 RPM	ISL9.5-325E40A \| 320 HP @1900 RPM	ISL9.5-340E40A \| 335 HP @ 1900 RPM
	ISL9.5-340E40A-ll \| 335 HP @ 1900 RPM	ISL9.5-340E41A \| 336 HP @ 1900 RPM	ISL9.5-340E42A \| 335 HP @ 1900 RPM	ISL9.5-340E43A \| 336 HP @ 1900 RPM
	ISL9.5-350E40A \| 347 HP @ 1900 RPM	ISL9.5-350E40A-ll \| 345 HP @ 1900 RPM	ISL9.5-360E40A \| 359 HP @ 1900 RPM	ISL9.5-375E40A \| 370 HP @ 1900 RPM
	ISL9.5-375E40A-II \| 370 HP @ 1900 RPM	ISL9.5-375E42A \| 370 HP @ 1900 RPM	ISL9.5-385E40A \| 382 HP @ 1900 RPM	ISL9.5-385E40A-II \| 382 HP @ 1900 RPM
	ISL9.5-385E41A \| 382 HP @ 1900 RPM	ISL9.5-385E51A \| 378 HP @ 1900 RPM	ISL9.5-400E40A \| 395 HP @ 1900 RPM	ISL9.5-400E40A-II \| 395 HP @ 1900 RPM
	ISL9.5-425E40A \| 419 HP @ 1900 RPM

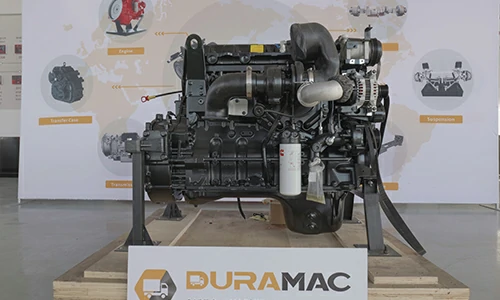

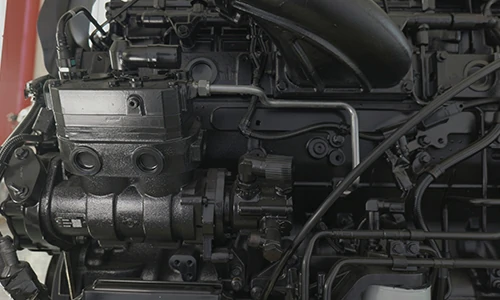

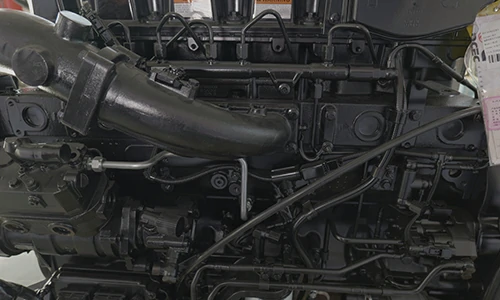

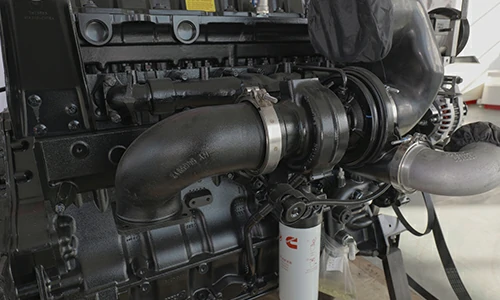

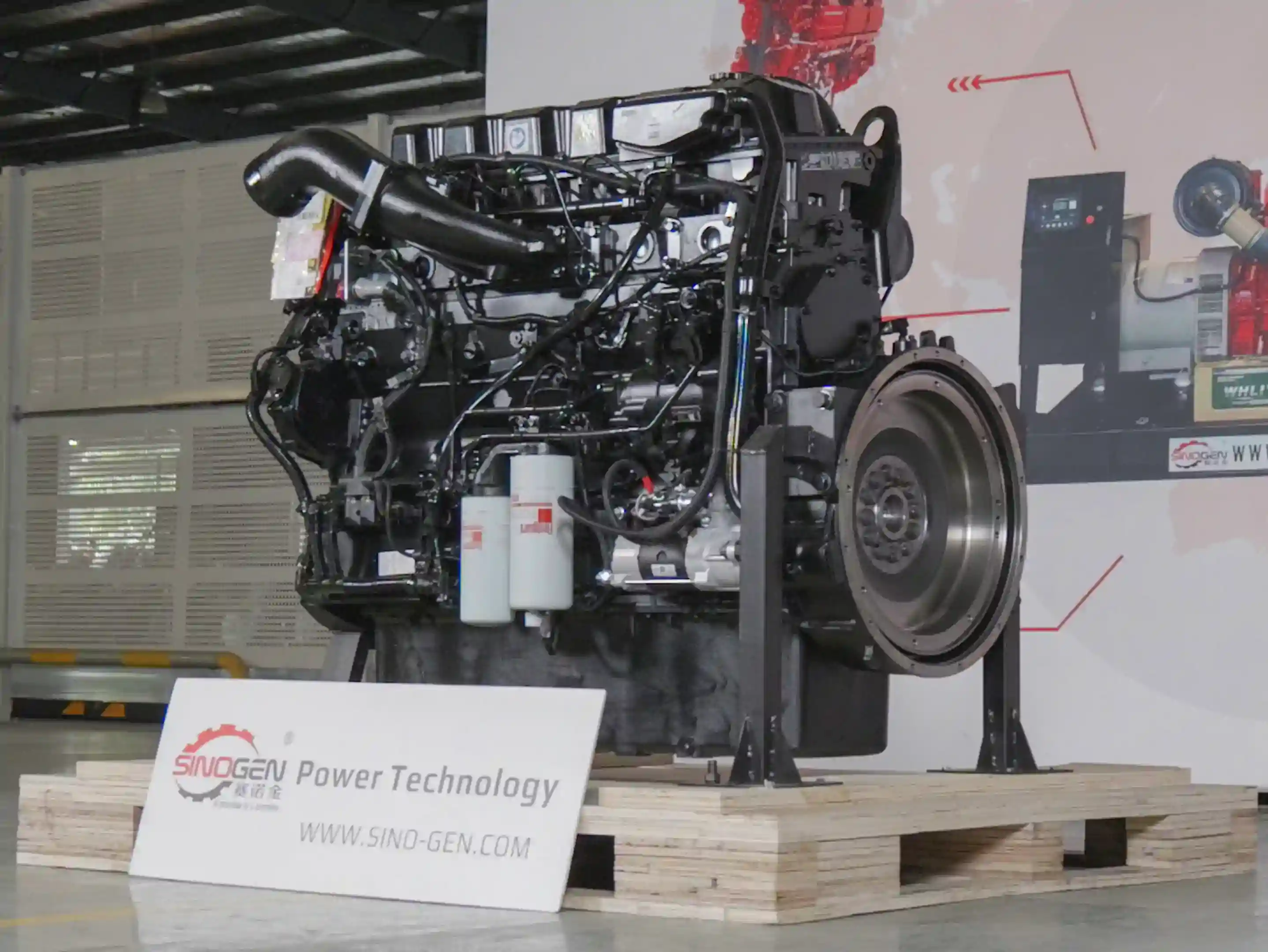

ISZ13 1396 mm * 1049 mm * 1232 mm Euro VI	ISZ425-40A \| 425 HP @ 2100 RPM	ISZ425-40B \| 425 HP @ 2100 RPM	ISZ425-41 \| 424 HP @ 2100 RPM	ISZ450-40A \| 456 HP @ 2100 RPM
	ISZ450-40B \| 450 HP @ 2100 RPM	ISZ450-41 \| 450 HP @ 2100 RPM	ISZ460-51 \| 450 HP @ 2100 RPM	ISZ520-41 \| 450 HP @ 2100 RPM
	ISZ525-40A \| 525 HP @ 2100 RPM	ISZ525-40B \| 525 HP @ 2100 RPM	ISZ525-40C \| 525 HP @ 2100 RPM	ISZ425 40 \| 425 HP (317 kW) @ 2100 RPM
	ISZ425 41 \| 418 HP (425 Ps) @ 1900 RPM	ISZ450 40 \| 450 HP(335 kw)@ 2100 RPM	ISZ480 40 \| 480 HP (480 bhp) @ 2100 RPM	ISZ480 41 \| 473 HP (480 Ps) @ 1900 RPM
	ISZ520 40 \| 520 HP (520 bhp) @ 2100 RPM	ISZ520 41 \| 525 HP (392 kW) @ 2100 RPM	ISZ525 40 \| 512 HP (520 Ps) @ 1900 RPM
ISM11 1300 mm * 900 mm * 1200 mm Euro III	ISMe385-30 \| 380 HP @ 1900 RPM	ISMe420-30 \| 420 HP @ 1900 RPM

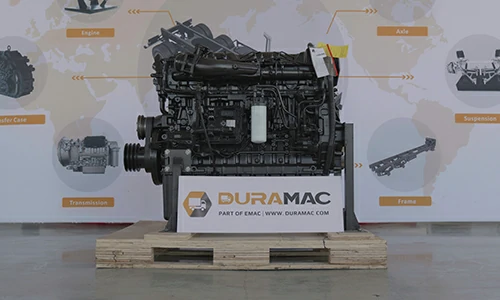

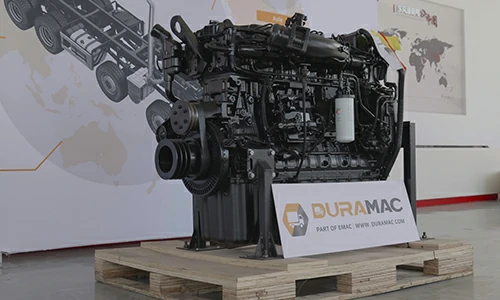

Z14NS6 1473 mm * 1106 mm * 1142 mm Euro VI – Euro V	Z14NS6B480 \| 480 HP @ 1800RPM	Z14NS6B520 \| 520 HP @ 1800RPM	Z14NS6B560 \| 560 HP @ 1800RPM	Z14NS6B600 \| 591 HP @ 1800RPM

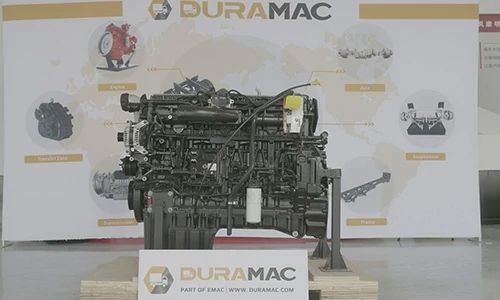

Z15NS6 1473 mm * 1106 mm * 1142 mm Euro V	Z15NS6B600 \| 519 HP @ 1800 RPM	Z15NS6B630 \| 622 HP @ 1800 RPM	Z15NS6B660 \| 650 HP @ 1800 RPM
——END——

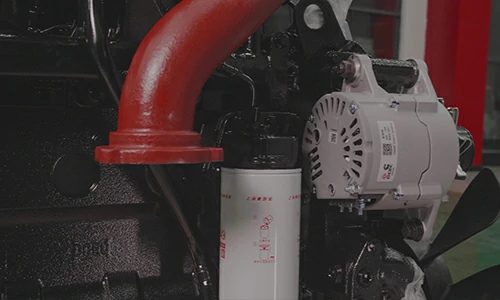

EQB125-20 Automotive Engine

Rated Power: 123 HP @ 2800 rpm
Max. Torque: 410 N.m @ 1500 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

EQB140-20 Automotive Engine

Rated Power: 140 HP @ 2700 RPM
Max. Torque: 502 N.m @ 1500 RPM
Fuel System: Bosch Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

EQB160-20 Automotive Engine

Rated Power: 160 HP @ 2500 RPM
Max. Torque: 550 N.m @ 1600 RPM
Fuel System: Bosch Pump
Aspiration: TC & Intercooler
Emission Standard: N/A

EQB170-21 Automotive Engine

Rated Power: 170 HP @ 2500 RPM
Max. Torque: 560 N.m @ 1300 RPM
Fuel System: BYC P7100 Pump / RQV-K
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

EQB180-20A Automotive Engine

Rated Power: 180 HP @ 2500 RPM
Max. Torque: 610 N.m @ 1500 RPM
Fuel System: Bosch Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

EQB180-20B Automotive Engine

Rated Power: 180 HP @ 2500 RPM
Max. Torque: 610 N.m @ 1500 RPM
Fuel System: Bosch / Weifu Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

EQB190-20 Automotive Engine

Rated Power: 190 HP @ 2800 RPM
Max. Torque: 650 N.m @ 1400 RPM
Fuel System: Bosch Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

EQB190-21 Automotive Engine

Rated Power: 190 HP @ 2500 RPM
Max. Torque: 640 N.m @ 1300-1500 RPM
Fuel System: BYC P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

EQB210-20A Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Max. Torque: 700 N.m @ 1500 RPM
Fuel System: Bosch Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

EQB210-20B Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Max. Torque: 700 N.m @ 1500 RPM
Fuel System: Bosch / Weifu Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

EQB235-20 Automotive Engine

Rated Power: 235 HP @ 2500 RPM
Max. Torque: 800 N.m @ 1600 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

B140-33 Automotive Engine

Rated Power: 140 HP @ 2500 RPM
Max. Torque: 502 N.m @ 1500 RPM
Fuel System: BYC Pump / RQVK
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

B170-33 Automotive Engine

Rated Power: 170 HP @ 2500 RPM
Max. Torque: 560 N.m @ 1300 RPM
Fuel System: BYC Pump / RQVK
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

B190-33 Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Max. Torque: 640 N.m @ 1300-1500 RPM
Fuel System: BYC Pump / RQVK
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

B210-33 Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Max. Torque: 700 N.m @ 1500 RPM
Fuel System: Weifu PH Pump / RQVK
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

C220-10A Automotive Engine

Rated Power: 220 HP @ 2400 RPM
Max. Torque: 780 N.m @ 1500 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Air Intercooler
Emission Standard: N/A

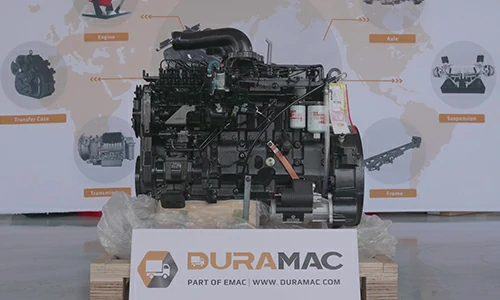

C220-10B Automotive Engine

Rated Power: 220 HP @ 2400 RPM
Max. Torque: 780 N.m @ 1500 RPM
Fuel System: BYC PB Pump
Aspiration: TC & Air Intercooler
Emission Standard: N/A

C230-10 Automotive Engine

Rated Power: 230 BHP @ 2400 RPM
Max. Torque: 800 N.m @ 1500 RPM
Fuel System: BYC PB Pump
Aspiration: TC & Air Intercooler
Emission Standard: N/A

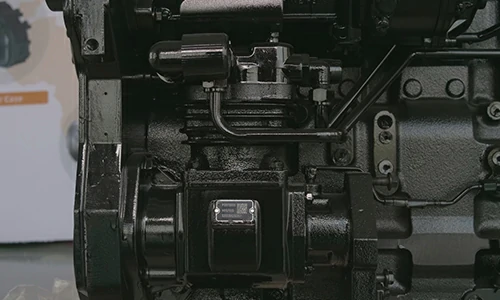

C230-20 Automotive Engine

Rated Power: 296 BHP @ 2200 RPM
Max. Torque: 1125 N.m @ 1400 RPM
Fuel System: Bosch P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

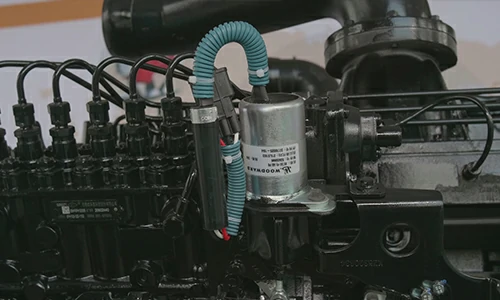

C240-10 Automotive Engine

Rated Power: 240 BHP @ 2400 RPM
Max. Torque: 880 N.m @ 1500 RPM
Fuel System: BYC PB Pump
Aspiration: TC & Air Intercooler
Emission Standard: N/A

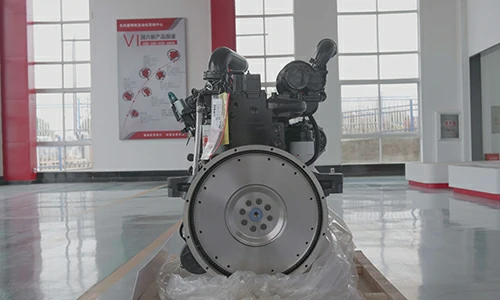

C245-20A Automotive Engine

Rated Power: 241 BHP @ 2400 RPM
Max. Torque: 1025 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

C245-20B Automotive Engine

Rated Power: 243 HP @ 2200 RPM
Max. Torque: 1043 N.m @ 1400 RPM
Fuel System: Bosch PW 2000 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

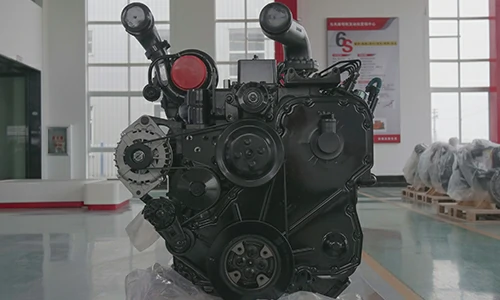

C260-20 Automotive Engine

Rated Power: 260 HP @ 2500 RPM
Max. Torque: 1025 N.m @ 1300 RPM
Fuel System: BYC P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

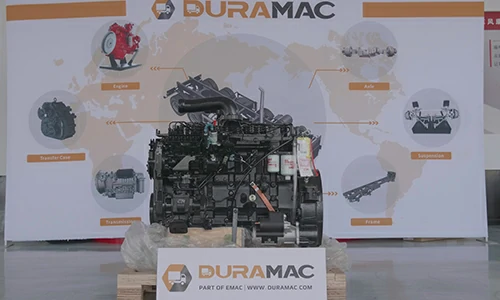

C260-33 Automotive Engine

Rated Power: 260 HP @ 2200 RPM
Max. Torque: 1025 N.m @ 1400 RPM
Fuel System: Weifu PH Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

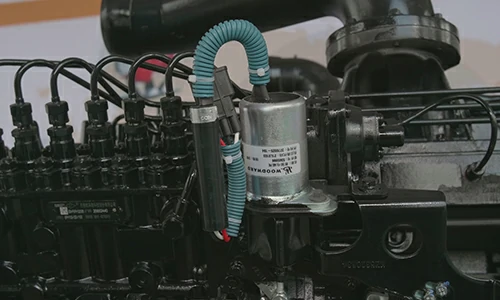

C280-20 Automotive Engine

Rated Power: 280 HP @ 2200 RPM
Max. Torque: 1125 N.m @ 1400 RPM
Fuel System: Weifu PW 2000 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

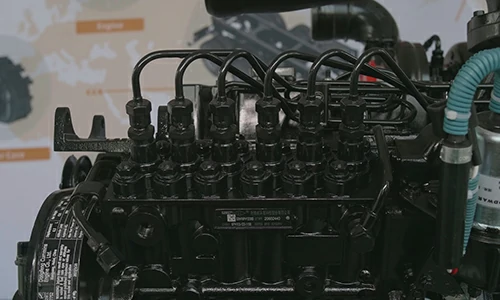

C300-20B Automotive Engine

Rated Power: 300 HP @ 2200 RPM
Max. Torque: 1125 N.m @ 1200 RPM
Fuel System: Weifu PW 2000 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

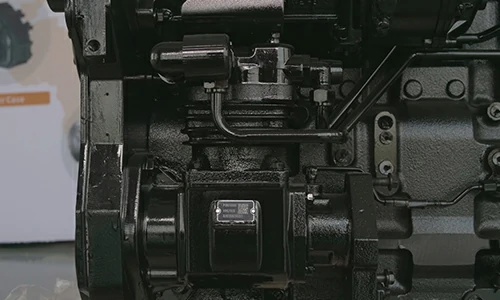

C300-20A Automotive Engine

Rated Power: 300 HP @ 2200 RPM
Max. Torque: 1125 N.m @ 1400 RPM
Fuel System: Bosch P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

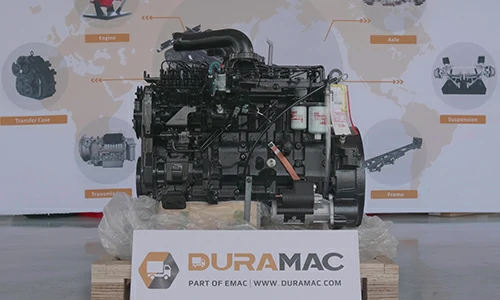

C325-20 Automotive Engine

Rated Power: 325 HP @ 2200 RPM
Max. Torque: 1175 N.m @ 1400 RPM
Fuel System: Bosch P 7100 Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

L300-20 Automotive Engine

Rated Power: 300 HP @ 2200 RPM
Max. Torque: 1180 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Intercooler
Emission Standard: N/A

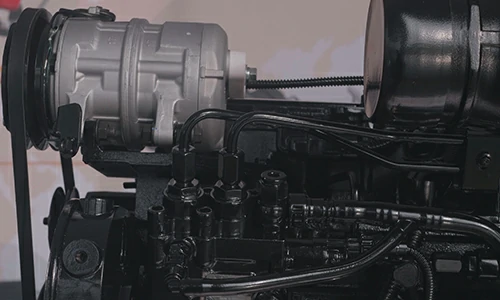

L325-20 Automotive Engine

Rated Power: 325 HP @ 2200 RPM
Max. Torque: 1230 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Intercooler
Emission Standard: N/A

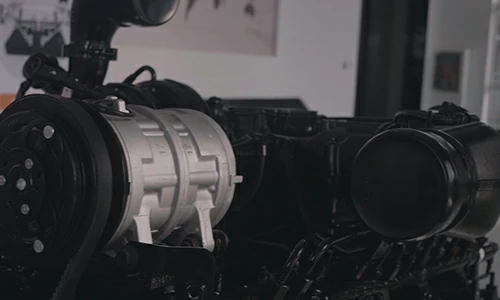

L340-20 Automotive Engine

Rated Power: 340 HP @ 2200 RPM
Max. Torque: 1350 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump
Aspiration: TC & Intercooler
Emission Standard: N/A

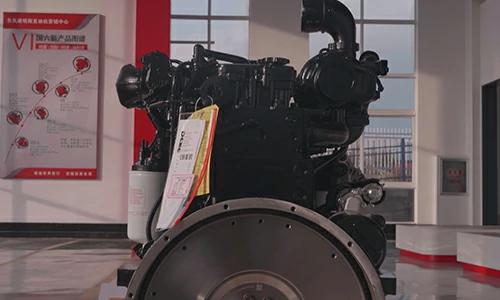

L340-30 Automotive Engine

Rated Power: 340 HP @ 2200 RPM
Max. Torque: 1350 N.m @ 1400 RPM
Fuel System: Weifu PH Pump
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

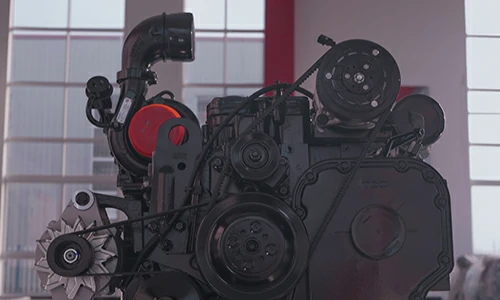

L360-20 Automotive Engine

Rated Power: 360 HP @ 2200 RPM
Max. Torque: 1480 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump / RQV-K
Aspiration: TC & Intercooler
Emission Standard: N/A

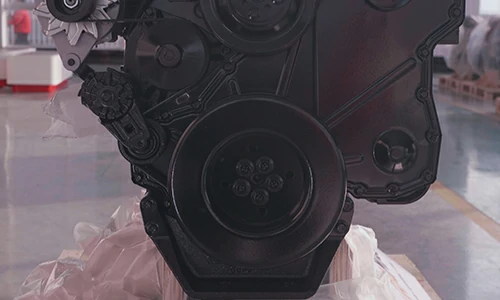

L360-30 Automotive Engine

Rated Power: 360 HP @ 2200 RPM
Max. Torque: 1480 N.m @ 1400 RPM
Fuel System: Weifu PH Pump / RQV-K
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

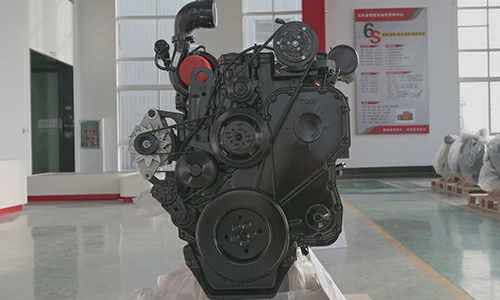

L375-30 Automotive Engine

Rated Power: 375 HP @ 2200 RPM
Max. Torque: 1480 N.m @ 1400 RPM
Fuel System: Bosch P7100 Pump / RQV-K
Aspiration: TC & Intercooler
Emission Standard: N/A

L9NS6B280 Automotive Engine

Rated Power: 276 HP @ 1900 RPM
Max. Torque: 1400 Nm @ 1000 RPM
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

L9NS6B315 Automotive Engine

Rated Power: 311 HP @ 1900 RPM
Max. Torque: 1500 Nm @ 1100 RPM
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

L9NS6B340 Automotive Engine

Rated Power: 335 HP @ 1900 RPM
Max. Torque: 1600 Nm @ 1100 RPM
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

L9NS6B360 Automotive Engine

Rated Power: 355 HP @ 1900 RPM
Max. Torque: 1700 Nm @ 1200 RPM
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

L9NS6B400 Automotive Engine

Rated Power: 394 HP @ 1900 RPM
Max. Torque: 1800 Nm @ 1200 RPM
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

L9NS6B400-II Automotive Engine

Rated Power: 394 HP @ 1900 RPM
Max. Torque: 1900 Nm @ 1300 RPM
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

L9NS6B430 Automotive Engine

Rated Power: 423 HP @ 2100 RPM
Max. Torque: 1900 Nm @ 1300 RPM
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

D4.0NS6B150 Automotive Engine

Rated Power: 147 HP @ 2400 RPM
Max. Torque: 520 Nm @ 1500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

D4.0NS6B160 Automotive Engine

Rated Power: 158 HP @ 2400 RPM
Max. Torque: 550 Nm @ 1500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

D4.0NS6B170 Automotive Engine

Rated Power: 167 HP @ 2400 RPM
Max. Torque: 600 Nm @ 1500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

D4.0NS6B185 Automotive Engine

Rated Power: 182 HP @ 2400 RPM
Max. Torque: 700 Nm @ 1500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

D4.0NS6B195 Automotive Engine

Rated Power: 191 HP @ 2400 RPM
Max. Torque: 600 (443) Nm@ 1500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

D4.0NS6B195-II Automotive Engine

Rated Power: 191 HP @ 2400 RPM
Max. Torque: 730 Nm @ 1500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISB3.9-125E40A Automotive Engine

Rated Power: 123 HP @ 2500 RPM
Fuel Pump: HP3
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: EURO Ⅲ

ISB3.9-140E40A Automotive Engine

Rated Power: 136 HP @ 2500 RPM
Fuel Pump: HP3
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: EURO Ⅲ

ISB3.9-160E41A Automotive Engine

Rated Power: 158 HP @ 2500 RPM
Fuel Pump: HP3
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: EURO Ⅲ

ISDe140 30 Automotive Engine

Rated Power: 138 HP @ 2500 RPM
Max. Torque: 140 N.m @ 2500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe140-30B Automotive Engine

Rated Power: 140 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: EURO III

ISDe140 41 Automotive Engine

Rated Power: 138 HP @2300 rpm
Max. Torque: 550 N.m @1100～1600 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISD140 51 Automotive Engine

Rated Power: 138 HP @ 2300 rpm
Max. Torque: 550 N.m @ 1100-1600 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe160 30 Automotive Engine

Rated Power: 158 HP @ 2700 rpm
Max. Torque: 500 N.m @ 1400 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe160-30A Automotive Engine

Rated Power: 160 HP @ 2700 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:TC & Air- Air Intercooler
Emission Standard: EU Stage III

ISDe160-30B Automotive Engine

Rated Power: 160 HP @ 2700 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:TC & Air- Air Intercooler
Emission Standard: EU Stage III

ISDe160 30-II Automotive Engine

Rated Power: 158 HP @ 2500 rpm
Max. Torque: 600 N.m @ 1400 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe160 31 Automotive Engine

Rated Power: 158 HP @ 2500 rpm
Max. Torque: 600 N.m @1200 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe160 41 Automotive Engine

Rated Power: 158 HP @ 2300 rpm
Max. Torque: 600 N.m @ 1100～1600 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISD160 51 Automotive Engine

Rated Power: 158 HP @ 2300 rpm
Max. Torque: 600 N.m @ 1100-1600 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe180 30 Automotive Engine

Rated Power: 182 HP @ 2500 RPM
Max. Torque: 650 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air
Emission Standard: Country III

ISDe180-30 Automotive Engine

Rated Power: 185 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:TC & Air-Air Intercooler
Emission Standard: EU Stage III

ISDe180 30-II Automotive Engine

Rated Power: 182 HP @ 2500 rpm
Max. Torque: 185 N.m @ 2500 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe180 40 Automotive Engine

Rated Power: 177 HP @ 2500 rpm
Max. Torque: 700 N.m @ 1500 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe185-30A Automotive Engine

Rated Power: 182 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:TC & Air-Air Intercooler
Emission Standard: Euro III

ISDe185-30B Automotive Engine

Rated Power: 185 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: Euro Ⅲ

ISDe185-31 Automotive Engine

Rated Power: 185 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: Turbocharged & Air-Air Intercooler
Emission Standard: EU Stage III

ISDe185 41 Automotive Engine

Rated Power: 182 HP @ 2300 rpm
Max. Torque: 700 N.m @ 1200～1600 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISD185 51 Automotive Engine

Rated Power: 182 HP @ 2300 rpm
Max. Torque: 700 N.m @ 1200-1800 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

D4.5NS6B190 Automotive Engine

Rated Power: 187 HP @ 2300 RPM
Max. Torque: 700 (516) Nm @ 1200 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe200-30 Automotive Engine

Rated Power: 200 HP @ 2700 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

D4.5NS6B210 Automotive Engine

Rated Power: 206 HP @ 2300 RPM
Max. Torque: 760 (561) Nm @ 1300 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

D4.5NS6B220 Automotive Engine

Rated Power: 217 HP @ 2300 RPM
Max. Torque: 820 (605) Nm @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISDe210-30A Automotive Engine

Rated Power: 207 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: EURO Ⅲ

ISDe210-30B Automotive Engine

Rated Power: 210 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

ISDe230-30 Automotive Engine

Rated Power: 226 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: EURO Ⅲ

ISDe245-30 Automotive Engine

Rated Power: 241 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: EURO Ⅲ

D6.7NS6B260 Automotive Engine

Rated Power: 256 HP @ 2300 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Chatge Air Intercooler
Compression Ratio:18.5:1

ISDe270-30A Automotive Engine

Rated Power: 266 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

ISDe270-30B Automotive Engine

Rated Power: 270 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

ISDe285-30 Automotive Engine

Rated Power: 285 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

ISDe285-50 Automotive Engine

Rated Power: 285 HP @ 2500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration:TC & Air-Air Intercooler
Emission Standard: Euro V

D6.7NS6B290 Automotive Engine

Rated Power: 289 HP @ 2300 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Chatge Air Intercooler
Compression Ratio:18.5:1

ISF2.8s3129T Automotive Engine

Rated Power: 130 HP @ 3200 RPM
Max. Torque: 310 N.m @ 1600 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air Intercooler
Emission Standard: Euro III

ISF2.8s4129T Automotive Engine

Rated Power: 130 HP @ 3200 RPM
Max. Torque: 310 N.m @ 1600 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

ISF2.8s4148T Automotive Engine

Rated Power: 150 HP @ 3200 RPM
Max. Torque: 310 N.m @ 1600 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

ISF3.8s3154 Automotive Engine

Rated Power: 153 HP @ 2600 RPM
Max. Torque: 500 N.m @ 1200-1900 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air Intercooler
Emission Standard: China Stage III

ISF3.8e4R168 Automotive Engine

Rated Power: 168 HP @ 2600 RPM
Max. Torque: 600 N.m @ 1300-1700 RPM
Fuel System: Denso HPCR
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

ISLe270 30 Automotive Engine

Rated Power: 269 HP @ 2100 rpm
Max. Torque: 1050 N.m @ 2100 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe290 30 Automotive Engine

Rated Power: 285 HP @ 2100 rpm
Max. Torque: 1050 N.m @ 1000 – 1900 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe290-30 Automotive Engine

Rated Power: 289 HP @ 2100 RPM
Max.Torque: 1050 N.m @ 1000-1900 RPM
Fuel System: CMS Common Rail System
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

ISLe290 40 Automotive Engine

Rated Power: 285 HP @ 2100 RPM
Max. Torque: 1050 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 4

ISLe290 50 Automotive Engine

Rated Power: 285 HP @ 2100 RPM
Max. Torque: 1055 N.m @ 1100-1700 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe292 40 Automotive Engine

Rated Power: 288 HP @ 2100 RPM
Max. Torque: 1200 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 4

ISLe292 50 Automotive Engine

Rated Power: 285 HP @ 2100 RPM
Max. Torque: 1055 N.m @1100-1700 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe310 30 Automotive Engine

Rated Power: 305 HP @ 2100 rpm
Max. Torque:1200 N.m @1000-1700 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe310-30 Automotive Engine

Rated Power: 309 HP @ 2100 RPM
Max.Torque: 1050 N.m @ 1000-1900 RPM
Fuel System: CMS Common Rail System
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

ISLe315 40 Automotive Engine

Rated Power: 311 HP @ 2100 RPM
Max. Torque: 1200 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 4

ISLe315 50 Automotive Engine

Rated Power: 315 HP @ 2100 RPM
Max. Torque: 1055 N.m @1100-1700 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe325 40 Automotive Engine

Rated Power: 320 HP @ 2100 RPM
Max. Torque: 1350 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 4

ISLe325 50 Automotive Engine

Rated Power: 324 HP @ 2100 RPM
Max. Torque: 1350 N.m @1100-1500 RPM
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe340 30 Automotive Engine

Rated Power: 335 HP @ 2100 rpm
Max. Torque: 1425 N.m @ 1100 – 1400 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe340-30 Automotive Engine

Rated Power: 340 HP @ 2100 RPM
Max.Torque: 1050 N.m @ 1000-1900 RPM
Fuel System: CMS Common Rail System
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

ISLe340 40 Automotive Engine

Rated Power: 335 HP @ 2100 RPM
Max. Torque: 1425 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 4

ISLe340 50 Automotive Engine

Rated Power: 340 HP @ 2100 RPM
Max. Torque: 1500 N.m @1200-1400 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe360 40 Automotive Engine

Rated Power: 355 HP @ 2100 RPM
Max. Torque: 1550 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 4

ISLe360 50 Automotive Engine

Rated Power: 359 HP @ 2100 RPM
Max. Torque: 1550 N.m @1100-1400 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe375 30 Automotive Engine

Rated Power: 268 HP @ 2100 RPM
Max.Torque: 1550N.m @1100-1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 3

ISLe375-30 Automotive Engine

Rated Power: 375 HP @ 2100 RPM
Max.Torque: 1050 N.m @ 1000-1900 RPM
Fuel System: CMS Common Rail System
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A

ISLe375 30-II Automotive Engine

Rated Power: 368 HP @ 2100 RPM
Max.Torque: 1550 N.m@1100-1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 3

ISLe375 40 Automotive Engine

Rated Power: 368 HP @ 2100 RPM
Max. Torque: 1550 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 4

ISLe375 50 Automotive Engine

Rated Power375 HP @ 2100 RPM
Max. Torque: 1550 N.m @1100-1500 rpm
Fuel System: CCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe380 50 Automotive Engine

Rated Power: 379 HP @ 2100 RPM
Max. Torque: 1700 N.m @1300-1400 rpm
Fuel System: HPCR
Aspiration: TC & Water-Air Intercooler
Emission Standard: EURO V

ISLe400 40 Automotive Engine

Rated Power: 394 HP @ 2100 RPM
Max. Torque: 1700 N.m @ 1400 RPM
Fuel System: CCR
Aspiration: Turbocharged & CAC
Emission Standard: EURO 4

LK290 33 Automotive Engine

Rated Power: 296 HP @ 2000 RPM
Max. Torque: 1350 N.m @ 1100 RPM
Fuel System: HPCR
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: EURO V

LK340 33 Automotive Engine

Rated Power: 343 HP @ 2000 RPM
Max. Torque: 1550 N.m @ 1200-1300 RPM
Fuel System: Weifu PH pump
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: EURO V

LK340 33-II Automotive Engine

Rated Power: 337 HP @ 2000 RPM
Max. Torque: 1500 N.m @ 1300 RPM
Fuel System: Weifu PH pump
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: EURO V

ISL9.5-292E40A Automotive Engine

Rated Power: 288 HP @ 1900 RPM
Max. Torque: 1200 N.m @ 1100 – 1700 RPM
Fuel System: HPCR
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-292E40A-II Automotive Engine

Rated Power: 288 HP @ 1900 RPM
Max. Torque: 1200 N.m @ 1100-1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & CAC
Emission Standard: Country IV

ISL9.5-292E42A Automotive Engine

Rated Power: 288 HP @ 1900 RPM
Max. Torque: 1200 N.m @ 1100-1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

ISL9.5-292E43A Automotive Engine

Rated Power: 288 HP @ 1900 RPM
Max. Torque: 1400 N.m @ 1200 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-315E40A Automotive Engine

Rated Power: 311 HP @ 1900 RPM
Max. Torque: 1250 N.m @ 1100 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-315E40A-II Automotive Engine

Rated Power: 311 HP @ 1900 RPM
Max. Torque: 1250 N.m @ 1100-1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & CAC
Emission Standard: Country IV

ISL9.5-315E43A Automotive Engine

Rated Power: 351 HP @ 1900 RPM
Max. Torque: 1500 N.m @ 1200 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-325E40A Automotive Engine

Rated Power: 320 HP @1900 RPM
Max. Torque: 1400 N.m @ 1100-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

ISL9.5-340E40A Automotive Engine

Rated Power: 335 HP @ 1900 RPM
Max. Torque: 1500 N.m @ 1100 – 1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-340E40A-II Automotive Engine

Rated Power: 335 HP @ 1900 RPM
Max. Torque: 1500 N.m @ 1100-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & CAC
Emission Standard: Country IV

ISL9.5-340E41A Automotive Engine

Rated Power: 336 HP @ 1900 RPM
Max. Torque: 1500 N.m @ 1200 – 1900 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-340E42A Automotive Engine

Rated Power: 335 HP @ 1900 RPM
Max. Torque: 1500 N.m @ 1100-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

ISL9.5-340E43A Automotive Engine

Rated Power: 336 HP @ 1900 RPM
Max. Torque: 1620 N.m @ 1200 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-350E40A Automotive Engine

Rated Power: 347 HP @ 1900 RPM
Max. Torque: 1500 N.m @ 1100 – 1600 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-350E40A-II Automotive Engine

Rated Power: 345 HP @ 1900 RPM
Max. Torque: 1500 N.m @ 1100-1600 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & CAC
Emission Standard: Country IV

ISL9.5-360E40A Automotive Engine

Rated Power: 359 HP @ 1900 RPM
Max. Torque: 1600 N.m @ 1200 – 1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-375E40A Automotive Engine

Rated Power: 370 HP @ 1900 RPM
Max. Torque: 1620 N.m @ 1200 – 1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-375E40A-II Automotive Engine

Rated Power: 370 HP @ 1900 RPM
Max. Torque: 1620 N.m @ 1200-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

ISL9.5-375E42A Automotive Engine

Rated Power: 370 HP @ 1900 RPM
Max. Torque: 1700 N.m @ 1200-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

ISL9.5-385E40A Automotive Engine

Rated Power: 382 HP @ 1900 RPM
Max. Torque: 1600 N.m @ 1100 – 1700 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-385E40A-II Automotive Engine

Rated Power: 382 HP @ 1900 RPM
Max. Torque: 1600 N.m @ 1100-1500 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

ISL9.5-385E41A Automotive Engine

Rated Power: 382 HP @ 1900 RPM
Max. Torque: 1600 N.m @ 1200 – 1900 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: Country VI

ISL9.5-385E51A Automotive Engine

Rated Power: 378 HP @ 1900 RPM
Max. Torque: 1600 N.m @ 1300 RPM
Fuel System: CFSW(HPCR)
Aspiration: TC & Air-Air Intercooler
Emission Standard:National level 4

ISL9.5-400E40A Automotive Engine

Rated Power: 395 HP @ 1900 RPM
Max. Torque: 1710 N.m @ 1200-1400 RPM
Fuel System: CCR
Aspiration: TC & Air-Air Intercooler
Emission Standard:National level 4

ISL9.5-400E40A-II Automotive Engine

Rated Power: 395 HP @ 1900 RPM
Max. Torque: 1710 N.m @ 1200-1400 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

ISL9.5-425E40A Automotive Engine

Rated Power: 419 HP @ 1900 RPM
Max. Torque: 1810 N.m @ 1300 – 1400 RPM
Fuel System: Kunpeng common rail system
Aspiration: Turbocharged & Charge Air Cooled
Emission Standard: Country IV

ISZ 425 40 Automotive Engine

Rated Power: 425 HP (317 kW) @ 2100 RPM
Max. Torque: 1450 lb-ft (1966 Nm) @ 1200 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO V

ISZ425-40A Automotive Engine

Rated Power: 425 HP @ 2100 RPM
Max.Torque: 1966 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

ISZ425-40B Automotive Engine

Rated Power: 425 HP @ 2100 RPM
Max.Torque: 1966 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

ISZ 450 40 Automotive Engine

Rated Power: 450 HP (335 kW) @ 2100 RPM
Max. Torque: 1650 lb-ft (2237 Nm) @ 1200 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO 4

ISZ425-41 Automotive Engine

Rated Power: 424 HP @ 2100 RPM
Max.Torque: 2016 N.m @ 1000-1400 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

ISZ480 40 Automotive Engine

Rated Power: 480 HP (480 bhp) @ 2100 RPM
Max. Torque: 2321 Nm @ 1100 RPM～1500 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: China IV

ISZ450-40A Automotive Engine

Rated Power: 456 HP @ 2100 RPM
Max.Torque: 2237 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

ISZ480 41 Automotive Engine

Rated Power: 473 HP (480 Ps) @ 1900 RPM
Max. Torque: 2458 Nm @ 1100 RPM ～ 1300 RPM
Fuel System: XPI
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: country VI

ISZ450-40B Automotive Engine

Rated Power: 450 HP @ 2100 RPM
Max.Torque: 2237 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

ISZ520 40 Automotive Engine

Rated Power: 520 HP (520 bhp) @ 2100 RPM
Max. Torque: 2508 Nm @ 1200 RPM～1500 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: China IV

ISZ450-41 Automotive Engine

Rated Power: 450 HP @ 2100 RPM
Max.Torque: 2338 N.m @ 1000-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

ISZ 525 40 Automotive Engine

Rated Power: 525 HP (392 kW) @ 2100 RPM
Max. Torque: 2508 Nm @ 1200 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO 4

ISZ460-51 Automotive Engine

Rated Power: 450 HP @ 2100 RPM
Max.Torque: 2338 N.m @ 1000-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

ISZ520 41 Automotive Engine

Rated Power: 512 HP (520 Ps) @ 1900 RPM
Max. Torque: 2458 Nm @ 1100 RPM ～ 1300 RPM
Fuel System: XPI
Aspiration: Turbocharging & air-to-air cooling
Emission Standard: country VI

ISZ520-41 Automotive Engine

Rated Power: 520 HP @ 1900 RPM
Max.Torque: 2458 N.m @ 1100-1300 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

ISZ525-40A Automotive Engine

Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2509 N.m @ 1600 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air Intercooler
Emission Standard: Euro IV

ISZ525-40B Automotive Engine

Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2508 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

ISZ525-40C Automotive Engine

Rated Power: 525 HP @ 2100 RPM
Max.Torque: 2508 N.m @ 1200 RPM
Fuel System: XPI Fuel System
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro IV

ISMe385-30 Automotive Engine

Rated Power: 380 HP @ 1900 RPM
Fuel Pump: Cummins
Governor: N/A
Aspiration: Turbocharged & Aftercooled
Emission Standard: EURO Ⅲ

ISMe420-30 Automotive Engine

Rated Power: 420 HP @ 1900 RPM
Fuel Pump: Celect Electronic
Governor: N/A
Aspiration: TC & Aftercooled
Emission Standard: China Stage III

Z14NS6B480 Automotive Engine

Rated Power: 480 HP @ 1800 RPM
Max. Torque: 2400 N.m @ 1000 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO V

Z14NS6B520 Automotive Engine

Rated Power: 520 HP @ 1800 RPM
Max. Torque: 2500 Nm @ 1000 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: China MEP NS VIB

Z14NS6B560 Automotive Engine

Rated Power: 560 HP @ 1800 RPM
Max. Torque: 2650 N.m @ 1100 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: China MEP NS VIB

Z14NS6B600 Automotive Engine

Rated Power: 591 HP @ 1800 RPM
Max. Torque: 2750 N.m @ 1000 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: China MEP NS VIB

Z15NS6B600 Automotive Engine

Rated Power: 591 HP @ 1800 RPM
Max. Torque: 2800 N.m @ 1000 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO V

Z15NS6B630 Automotive Engine

Rated Power: 622 HP @ 1800 RPM
Max. Torque: 3000 N.m @ 1000 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO V

Z15NS6B660 Automotive Engine

Rated Power: 650 HP @ 1800 RPM
Max. Torque: 3200 N.m @ 1000 RPM
Fuel System: XPI
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EURO V

Industrial Engine

4BT3.9 Industrial	80-130 HP
6BT5.9 Industrial		115-180 HP
6CTA8.3 Industrial		145-280 HP
6LTAA8.9 Industrial			220-354 HP
QSB3.9 Industrial		108-128 HP
QSB4.5 Industrial		108-159 HP
QSB5.9 Industrial		130-206 HP
QSB6.7 Industrial		133-260 HP
QSC8.3 Industrial		151-260 HP
QSF2.8 Industrial	46-74 HP
QSF3.8 Industrial		99-139 HP
QSL8.9 Industrial		214-354 HP
QSM11 Industrial			289-410 HP
QSM15 Industrial								754 HP
QSZ13 Industrial				383-575 HP
QSZ14 Industrial					453-552 HP
M15CS4 Industrial						552-754 HP
Engine Model Power/HP	0	100	200	300	400	500	600	700
	Emission Srandard:Euro ⅠEuro ⅡEuro ⅢEuro ⅣEuro ⅤEuro ⅥEuro Ⅶ

DCEC Industrial Engine Catalogue

Series

Model

4BT3.9 Industrial Engine 778 mm * 634 mm * 912 mm Euro Stage II	4BT3.9-C80 \| 80HP @ 2000RPM	4BT3.9-C100 \| 100 HP @ 2400 RPM	4BT3.9-C105 \| 103 HP @ 2800 RPM	4BT3.9-C110 \| 110 HP @ 2600 RPM
	4BTA3.9-C80 \| 80 HP @ 2200 RPM	4BTA3.9-C100 \| 100 HP @ 2200 RPM	4BTA3.9-C110 \| 110 HP @ 2200 RPM	4BTA3.9-C125 \| 125 HP @ 2200 RPM
	4BTA3.9-C130 \| 130 HP @ 2500 RPM	4BTAA3.9-C110 \| 110 HP @ 2200 RPM	4BTAA3.9-C125 \| 125 HP @ 2200 RPM
6BT5.9 Industrial Engine 1026 mm * 699 mm * 912 mm Euro Stage I – II	6BT5.9-C115 \| 115 HP @ 2000 RPM	6BT5.9-C120 \| 120 HP @ 2200 RPM	6BT5.9-C125 \| 125 HP @ 2400 RPM	6BT5.9-C130 \| 130 HP @ 2200 RPM
	6BT5.9-C135 \| 135 HP @ 2000 RPM	6BT5.9-C145 \| 145 HP @ 2100 RPM	6BT5.9-C150A \| 150 HP @ 2500 RPM	6BTA5.9-C150 \| 150 HP @ 2200 RPM
	6BTA5.9-C155 \| 155 HP @ 2000 RPM	6BTA5.9-C170A \| 170 HP @ 2300 RPM	6BTA5.9-C175 \| 175 HP @ 2100 RPM	6BTA5.9-C180 \| 180 HP @ 2500 RPM
	6BTAA5.9-C130 \| 130 HP @ 2200 RPM	6BTAA5.9-C160 \| 160 HP @ 2200 RPM	6BTAA5.9-C170 \| 170 HP @ 2200 RPM
6CTA8.3 Industrial Engine 1115 mm * 716 mm * 1077 mm Euro Stage I – II	6CTA8.3-C145 \| 145 HP @ 1900 RPM	6CTA8.3-C195 \| 192 HP @ 1900 RPM	6CTA8.3-C212 \| 212 HP @ 2200 RPM	6CTA8.3-C215 \| 215 HP @ 2200 RPM
	6CTA8.3-C230 \| 230 HP @ 2200 RPM	6CTA8.3-C240 \| 240 HP @ 2200 RPM	6CTA8.3-C260 \| 260 HP @ 2200 RPM	6CTAA8.3-C215 \| 215 HP @ 2200 RPM
	6CTAA8.3-C260 \| 260 HP @ 2200 RPM	6CTAA8.3-C280 \| 280 HP @ 2200 RPM
6LTAA8.9 Industrial Engine 1550 mm * 900 mm * 1400 mm Euro Stage II	6LTAA8.9-C220 \| 220 HP @ 2200 RPM	6LTAA8.9-C240 \| 240 HP @ 2200 RPM	6LTAA8.9-C300 \| 300 HP @ 2000 RPM	6LTAA8.9-C325 \| 320 HP @ 2200 RPM
	6LTAA8.9-C360 \| 320 HP @ 2200 RPM
QSB3.9 Industrial Engine 778 mm * 634 mm * 912 mm Euro Stage III	QSB3.9-C110-30 \| 109 HP @ 2200 RPM	QSB3.9-C125-30 \| 125 HP @ 2200 RPM	QSB3.9-C130-31 \| 129 HP @ 2500 RPM
QSB4.5 Industrial Engine 800 mm * 644 mm * 950 mm Euro Stage III	QSB4.5-C109 \| 109 HP @ 2000 RPM	QSB4.5-C110A \| 110 HP @ 2200 RPM	QSB4.5-C110B \| 110 HP @ 2200 RPM	QSB4.5-C110C \| 110 HP @ 2500 RPM
	QSB4.5-C110D \| 110 HP @ 2200 RPM	QSB4.5-C121 \| 121 HP @ 2200 RPM	QSB4.5-C128 \| 128 HP @ 2200 RPM	QSB4.5-C130A \| 130 HP @ 2200 RPM
	QSB4.5-C130B \| 130 HP @ 2000 RPM	QSB4.5-C130C \| 130 HP @ 1800 RPM	QSB4.5-C130D \| 130 HP @ 2300 RPM	QSB4.5-C132 \| 132 HP @ 2000 RPM
	QSB4.5-C139 \| 139 HP @ 2000 RPM	QSB4.5-C140 \| 139 HP @ 2000 RPM	QSB4.5-C148 \| 148 HP @ 2300 RPM	QSB4.5-C160A \| 160 HP @ 2500 RPM
	QSB4.5-C160B \| 160 HP @ 2400 RPM	QSB4.5-C160C \| 160 HP @ 2300 RPM	QSB4.5-C160D \| 160 HP @ 2200 RPM
QSB5.9 Industrial Engine 1015 mm * 725 mm *990mm Euro Stage III	QSB5.9-C130-30 \| 130 HP @ 2200 RPM	QSB5.9-C150-30 \| 152 HP @ 2000 RPM	QSB5.9-C160-30 \| 160 HP @ 2200 RPM	QSB5.9-C180-30 \| 180 HP @ 2200 RPM
	QSB5.9-C180-31 \| 180 HP @ 2400 RPM	QSB5.9-C210-30 \| 210 HP @ 2200 RPM
QSB6.7 Industrial Engine 1111 mm * 716 mm *960mm Euro Stage III	QSB6.7-C130 \| 133 HP @ 2200 RPM	QSB6.7-C133 \| 133 HP @ 2200 RPM	QSB6.7-C170 \| 170 HP @ 2000 RPM	QSB6.7-C190 \| 190 HP @ 2200 RPM
	QSB6.7-C220 \| 220 HP @ 2200 RPM	QSB6.7-C260 \| 260 HP @ 2200 RPM
QSC8.3 Industrial Engine 1159 mm * 734 mm * 1153 mm Euro Stage III	QSC8.3-C240-30 \| 152 HP @ 2000 RPM	QSC8.3-C260-30 \| 260 HP @ 2200 RPM
QSF2.8 Industrial Engine N/A Euro Stage IIIA	QSF2.8-C60 \| 60 HP @ 2200 RPM	QSF2.8-C72 \| 72 HP @ 2400 RPM
QSF3.8 Industrial Engine N/A Euro Stage IIIA	QSF3.8 T3-86 \| 115 HP @ 2200 RPM
QSL8.9 Industrial Engine 1240 mm * 780 mm * 1185 mm EU Stage IIIA	QSL8.9-C220-III \| 220 HP @ 2200 RPM	QSL8.9-C325-III \| 325 HP @ 2100 RPM	QSL8.9-C340-III \| 340 HP @ 2100 RPM	QSL8.9-C360-III \| 360 HP @ 2100 RPM
QSM11 Industrial Engine N/A EU Stage II – IIIA	QSM11-C290 \| 290 HP @ 2100 RPM	QSM11-C300 \| 300 HP @ 2100 RPM	QSM11-C315 \| 315 HP @ 2100 RPM	QSM11-C335 \| 335 HP @ 2100 RPM
	QSM11-C340 \| 340 HP @ 1800 RPM	QSM11-C350A \| 350 HP @ 2100 RPM	QSM11-C350B \| 350 HP @ 2000 RPM	QSM11-C360A \| 360 HP @ 1800 RPM
	QSM11-C360B \| 360 HP @ 2100 RPM	QSM11-C375 \| 375 HP @ 2100 RPM	QSM11-C400 \| 400 HP @ 2100 RPM
QSM15 Industrial Engine N/A EU Stage IIIA	QSM15 \| 755 HP @ 2100 RPM
QSZ13 Industrial Engine N/A EU stage II – IIIA	QSZ13-C380-III \| 380 HP @ 1900 RPM	QSZ13-C400-III \| 400 HP @ 1900 RPM	QSZ13-C425-II \| 425 HP @ 1900 RPM	QSZ13-C425-III \| 425 HP @ 1900 RPM

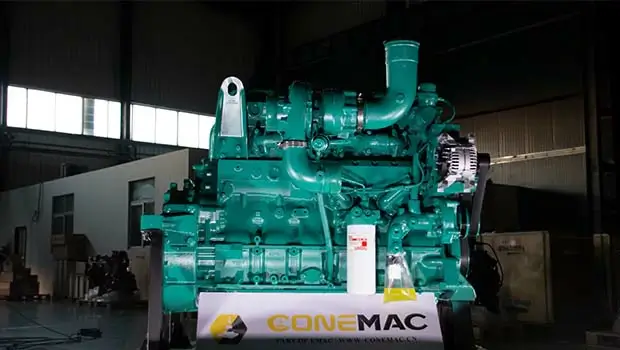

	QSZ13-C450-II \| 450 HP @ 1900 RPM	QSZ13-C450-III \| 450 HP @ 1900 RPM	QSZ13-C475-II \| 475 HP @ 1900 RPM	QSZ13-C475-III \| 475 HP @ 1900 RPM
	QSZ13-C500-II \| 500 HP @ 1900 RPM	QSZ13-C500-III \| 500 HP @ 1900 RPM	QSZ13-C525-II \| 525 HP @ 1900 RPM	QSZ13-C550-II \| 550 HP @ 1900 RPM
	QSZ13-C575-II \| 575 HP @ 1900 RPM
QSZ14 Industrial Engine N/A CH SG3	QSZ14-460-30 \| 460 HP @ 2100 RPM	QSZ14-490-30 \| 490 HP @ 2100 RPM	QSZ14-540-30 \| 540 HP @ 2100 RPM	QSZ14-560-30 \| 560 HP @ 2100 RPM
QSZ14 Industrial Engine N/A CH SG3	QSZ14-560-31 \| 560 HP @ 2100 RPM
M15CS4 Industrial Engine N/A CH SG4	M15CS4-560C \| 560 HP @ 2100 RPM	M15CS4-600C \| 600 HP @ 2100 RPM	M15CS4-650C \| 650 HP @ 2100 RPM	M15CS4-775C \| 775 HP @ 2100 RPM
——END——

4BTAA3.9-C125-II Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 386 N.m @ 2300 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTAA3.9-C80 Industrial Engine

Rated Power: 80 HP @ 2200 RPM
Max. Torque: 257 N.m @ 2200 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTA3.9-C125-I Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 407 N.m @ 2200 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTA3.9-C110-II Industrial Engine

Rated Power: 30 HP @ 800 RPM
Max. Torque: 259 N.m @ 800 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTA3.9-C100-II Industrial Engine

Rated Power: 99 HP @ 2200 RPM
Max. Torque: 321 N·m @ 2200 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTA3.9-C80-II Industrial Engine

Rated Power: 80 HP @ 2200 RPM
Max. Torque: 260 N.m @ 2200 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTAA3.9-C130 Industrial Engine

Rated Power: 130 HP @ 2500 RPM
Max. Torque: 372 N·m @ 2500 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTAA3.9-C125-I Industrial Engine

Rated Power: 123 HP @ 2200 RPM
Max. Torque: 401 N.m @ 2300 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTAA3.9-C100 Industrial Engine

Rated Power: 99 HP @ 2200 RPM
Max. Torque: 324 N.m @ 2200 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTA3.9-C130-II Industrial Engine

Rated Power: 28 HP @ 800 RPM
Max. Torque: 252 N.m @ 800 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTA3.9-C125-II Industrial Engine

Rated Power: 34 HP @ 800 RPM
Max. Torque: 298 N.m @ 800 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTAA3.9-C115 Industrial Engine

Rated Power: 117 HP @ 2200 RPM
Max. Torque: 378 N·m @ 2200 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BT3.9-C80 Industrial Engine

Rated Power: 80 HP @ 2000 RPM
Max. Torque: 330 N.m @ 1500 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BT3.9-C100 Industrial Engine

Rated Power: 100 HP @ 2400 RPM
Max. Torque: 330 N.m @ 1600 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

4BT3.9-C105 Industrial Engine

Rated Power: 105 HP @ 2800 RPM
Max. Torque: 330 N.m @ 1600 RPM
Fuel System: Weifu A Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BT3.9-C110 Industrial Engine

Rated Power: 110 HP @ 2600 RPM
Max. Torque: 330 N.m @ 1600 RPM
Fuel System: Weifu A Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N / A

4BTA3.9-C80 Industrial Engine

Rated Power: 80 HP @ 2200 RPM
Max. Torque: 360 N.m @ 1400 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: EU Stage I

4BTA3.9-C100 Industrial Engine

Rated Power: 100 HP @ 2200 RPM
Max. Torque: 410 N·m @ 1500 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: SEPA STAGE I

4BTA3.9-C110 Industrial Engine

Rated Power: 110 HP @ 2200 RPM
Max. Torque: 460 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

4BTA3.9-C125 Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 475 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RQV-K Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

4BTA3.9-C130 Industrial Engine

Rated Power: 130 HP @ 2500 RPM
Max. Torque: 475 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RQV-K Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

4BTAA3.9-C110 Industrial Engine

Rated Power: 110 HP @ 2200 RPM
Max. Torque: 500 N.m @ 1400 RPM
Fuel System：Weifu PW Pump / RSV Mech.
Aspiration：Turbocharged & Air-Air Intercooler
Emission Standard: CHINA II

4BTAA3.9-C125 Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 480 N·m @ 1400 RPM
Fuel System: Weifu PW2000 / RQV-K Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: MEP STAGE II

6BTAA5.9-C205-30 Industrial Engine

Rated Power: 202 HP @ 2200 RPM
Max. Torque: 655 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C205-I Industrial Engine

Rated Power: 205 HP @ 2000 RPM
Max. Torque: 731 N.m @ 2000 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C190-30 Industrial Engine

Rated Power: 202 HP @ 2200 RPM
Max. Torque: 655 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C180-30 Industrial Engine

Rated Power: 182 HP @ 2200 RPM
Max. Torque: 590 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BAA5.9-C180-II Industrial Engine

Rated Power: 182 HP @ 2200 RPM
Max. Torque: 590 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C180 Industrial Engine

Rated Power: 177 HP @ 2200 RPM
Max. Torque: 573 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BAA5.9-C160-II Industrial Engine

Rated Power: 161 HP @ 2200 RPM
Max. Torque: 519 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C150-II Industrial Engine

Rated Power: 152 HP @ 2500 RPM
Max. Torque: 439 N.m @ 2500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C150 Industrial Engine

Rated Power: 149 HP @ 1950 RPM
Max. Torque: 549 N.m @ 1950 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BAA5.9-C130-III Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 421 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C130-I Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 421 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C125 Industrial Engine

Rated Power: 123 HP @ 2000 RPM
Max. Torque: 439 N.m @ 2000 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C180-II Industrial Engine

Rated Power: 46 HP @ 800 RPM
Max. Torque: 400 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C170-IV Industrial Engine

Rated Power: 35 HP @ 800 RPM
Max. Torque: 308 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C170-II Industrial Engine

Rated Power: 170 HP @ 2000 RPM
Max. Torque: 598 N.m @ 2000 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C165 Industrial Engine

Rated Power: 40 HP @ 800 RPM
Max. Torque: 363 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C150-II Industrial Engine

Rated Power: 41 HP @ 800 RPM
Max. Torque: 371 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C150-I Industrial Engine

Rated Power: 35 HP @ 800 RPM
Max. Torque: 310 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C130-III Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 423 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C130-I Industrial Engine

Rated Power: 150 HP @ 2200 RPM
Max. Torque: 421 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C125-I Industrial Engine

Rated Power: 123 HP @ 2200 RPM
Max. Torque: 399 N.m @ 1500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-G12 Industrial Engine

Rated Power: 200 HP @ 1800 RPM
Max. Torque: N / A
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C205-II Industrial Engine

Rated Power: 205 HP @ 2200 RPM
Max. Torque: 666 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C205 Industrial Engine

Rated Power: 205 HP @ 2200 RPM
Max. Torque: 664 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C190 Industrial Engine

Rated Power: 190 HP @ 2000 RPM
Max. Torque: 678 N.m @ 2000 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C180-III Industrial Engine

Rated Power: 177 HP @ 2500 RPM
Max. Torque: 506 N.m @ 2500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C180-I Industrial Engine

Rated Power: 177 HP @ 2500 RPM
Max. Torque: 500 N.m @ 2500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C160-I Industrial Engine

Rated Power: 58 HP @ 800 RPM
Max. Torque: 515 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C150-30 Industrial Engine

Rated Power: N / A
Max. Torque: 535 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C150-I Industrial Engine

Rated Power: 150 HP @ 2200 RPM
Max. Torque: 486 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C130-30 Industrial Engine

Rated Power: 131 HP @ 2200 RPM
Max. Torque: 425 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTAA5.9-C130-II Industrial Engine

Rated Power: 130 HP @ 2000 RPM
Max. Torque: 463 N.m @ 2000 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C180-III Industrial Engine

Rated Power: 35 HP @ 800 RPM
Max. Torque: 312 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C180-I Industrial Engine

Rated Power: 46 HP @ 800 RPM
Max. Torque: 400 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C175-I Industrial Engine

Rated Power: 42 HP @ 800 RPM
Max. Torque: 370 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C170-V Industrial Engine

Rated Power: 170 HP @ 2000 RPM
Max. Torque: 606 N.m @ 2000 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C170-III Industrial Engine

Rated Power: 170 HP @ 2000 RPM
Max. Torque: 606 N.m @ 2000 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C170-I Industrial Engine

Rated Power: 170 HP @ 2000 RPM
Max. Torque: 606 N.m @ 2000 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C165-I Industrial Engine

Rated Power: 40 HP @ 800 RPM
Max. Torque: 363 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C155-I Industrial Engine

Rated Power: 35 HP @ 800 RPM
Max. Torque: 312 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C150-III Industrial Engine

Rated Power: 35 HP @ 800 RPM
Max. Torque: 312 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C150-I Industrial Engine

Rated Power: 35 HP @ 800 RPM
Max. Torque: 312 N.m @ 800 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C150-II Industrial Engine

Rated Power: 150 HP @ 2400 RPM
Max. Torque: 446 N.m @ 2400 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C130-II Industrial Engine

Rated Power: 150 HP @ 2200 RPM
Max. Torque: 423 N.m @ 1400 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C125 Industrial Engine

Rated Power: 123 HP @ 2200 RPM
Max. Torque: 400 N.m @ 2200 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C115 Industrial Engine

Rated Power: 115 HP @ 2000 RPM
Max. Torque: 430 N.m @ 1500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C120 Industrial Engine

Rated Power: 120 HP @ 2200 RPM
Max. Torque: 436 N.m @ 1500 RPM
Fuel System: Weifu PW Pump / RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C125A Industrial Engine

Rated Power: 125 HP @ 2400 RPM
Max. Torque: 425 N.m @ 1500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: Euro Stage I

6BT5.9-C125B Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 540 N.m @ 1400 RPM
Fuel System: BYC PB Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: Euro Stage I

6BT5.9-C130 Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 560 N.m @ 1500 RPM
Fuel System: Weifu PW Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: Euro Stage I

6BT5.9-C135 Industrial Engine

Rated Power: 135 HP @ 2000 RPM
Max. Torque: 570 N.m @ 1500 RPM
Fuel System: Inline-NYC A Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C145 Industrial Engine

Rated Power: 145 HP @ 2100 RPM
Max. Torque: 580 N.m @ 1500 RPM
Fuel System: Inline-NYC A Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BT5.9-C150A Industrial Engine

Rated Power: 150 HP @ 2500 RPM
Max. Torque: 565 N.m @ 1500 RPM
Fuel System: Inline-WEIFU A Pump/RSV Mech.
Aspiration: Turbocharged
Emission Standard: N/A

6BTA5.9-C150A Industrial Engine

Rated Power: 150 HP @ 2200 RPM
Max. Torque: 655 N.m @ 1500 RPM
Fuel System: BYC PB Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

6BTA5.9-C155 Industrial Engine

Rated Power: 155 HP @ 2000 RPM
Max. Torque: 630 N.m @ 1400 RPM
Fuel System: Weifu AD Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

6BTA5.9-C170A Industrial Engine

Rated Power: 170 HP @ 2300 RPM
Max. Torque: 630 N.m @ 1400 RPM
Fuel System: Weifu AD Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

6BTA5.9-C175 Industrial Engine

Rated Power: 175 HP @ 2100 RPM
Max. Torque: 680 N.m @ 1500 RPM
Fuel System: Weifu AD Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

6BTA5.9-C180 Industrial Engine

Rated Power: 180 HP @ 2500 RPM
Max. Torque: 630 N.m @ 1400-1600 RPM
Fuel System: Weifu AD Pump/RSV Mech.
Aspiration: TC&Water-Air Intercooler
Emission Standard: Euro Stage I

6BTAA5.9-C130A Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 580 N.m @ 1500 RPM
Fuel System: BYC P7100 Pump/RQV_K Mech.
Aspiration: TC&Air-Air Intercooler
Emission Standard: Euro Stage II

6BTAA5.9-C160 Industrial Engine

Rated Power: 160 HP @ 2200 RPM
Max. Torque: 670 N.m @ 1500 RPM
Fuel System: Weifu PW2000/RSV Mech.
Aspiration: TC&Air-Air Intercooler
Emission Standard: Euro Stage II

« Older Entries

6CT9.5-C220 Industrial Engine

Rated Power: 217 HP @ 2200 RPM
Maximum Torque: 703 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTAA8.3-C260-II Industrial Engine

Rated Power: 260 HP @ 2000 RPM
Maximum Torque: 927 N.m @ 2000 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTAA8.3-C240-II Industrial Engine

Rated Power: 240 HP @ 2000 RPM
Maximum Torque: 858 N.m @ 2000 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-G2 Industrial Engine

Rated Power: 278 HP @ 1800 RPM
Max. Torque: N / A @ 1800 RPM
Fuel System: Beiyou PB pump / electronic speed regulator
Aspiration: Turbocharged
Emission Standard: N / A

6CTA8.3-G2 Industrial Engine

Rated Power: 278 HP @ 1800 RPM
Maximum Torque: N / A
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C260-I Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Maximum Torque: 842 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C240-II Industrial Engine

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 782 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C230-II Industrial Engine

Rated Power: 231 HP @ 2200 RPM
Maximum Torque: 748 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-VII Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 695 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-V Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 684 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-III Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 695 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-I Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 693 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C205 Industrial Engine

Rated Power: 202 HP @ 1850 RPM
Maximum Torque: 780 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C190-II Industrial Engine

Rated Power: 190 HP @ 2200 RPM
Maximum Torque: 618 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CT9.5-C220-I Industrial Engine

Rated Power: 217 HP @ 2000 RPM
Maximum Torque: 774 N.m @ 2000 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTAA8.3-C240 Industrial Engine

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 777 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTAA8.3-C145 Industrial Engine

Rated Power: 145 HP @ 1900 RPM
Maximum Torque: 542 N.m @ 1900 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C260-II Industrial Engine

Rated Power: 260 HP @ 1900 RPM
Maximum Torque: 975 N.m @ 1900 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C240-I Industrial Engine

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 782 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C230-III Industrial Engine

Rated Power: 228 HP @ 1850 RPM
Maximum Torque: 878 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C230-I Industrial Engine

Rated Power: 228 HP @ 1850 RPM
Maximum Torque: 878 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-VIII Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 693 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-VI Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 695 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-IV Industrial Engine

Rated Power: 202 HP @ 1850 RPM
Maximum Torque: 780 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215-II Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 695 N.m @ 2200 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C205-II Industrial Engine

Rated Power: 202 HP @ 1850 RPM
Maximum Torque: 780 N.m @ 1850 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C145 Industrial Engine

Rated Power: 145 HP @ 1900 RPM
Maximum Torque: 674 N.m @ 1300 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C195 Industrial Engine

Rated Power: 195 HP @ 1900 RPM
Maximum Torque: 883 N.m @ 1400 RPM
Fuel System: BYC PB Pump / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C212 Industrial Engine

Rated Power: 212 HP @ 1900 RPM
Maximum Torque: 908 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: Euro Stage I

6CTA8.3-C215 Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 693 N.m @ 2200 RPM
Fuel System: Weifu P7100 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: EPA Tier1

6CTA8.3-C230 Industrial Engine

Rated Power: 230 HP @ 2200 RPM
Maximum Torque: 1000 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

6CTA8.3-C240 Industrial Engine

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 1028 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: EPA Tier1

6CTA8.3-C260 Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Maximum Torque: 1135 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N / A

6CTAA8.3-C215 Industrial Engine

Rated Power: 215 HP @ 2200 RPM
Maximum Torque: 980 N.m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: SEPA STAGE II

6CTAA8.3-C260 Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Maximum Torque: 1100 N.m @ 1400 RPM
Fuel System: BYC P7100 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

6CTAA8.3-C280 Industrial Engine

Rated Power: 280 HP @ 2200 RPM
Maximum Torque: 1125 N.m @ 1200 RPM
Fuel System: BYC P7100 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage II

6LTAA8.9-C325-II Industrial Engine

Rated Power: 328 HP @ 2000 RPM
Maximum Torque: 1150 N·m @ 2000 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C295 Industrial Engine

Rated Power: 299 HP @ 2100 RPM
Maximum Torque: 1000 N·m @ 2100 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C280 Industrial Engine

Rated Power: 284 HP @ 2200 RPM
Maximum Torque: 910 N·m @ 2200 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C260 Industrial Engine

Rated Power: 264 HP @ 2200 RPM
Maximum Torque: 842 N·m @ 2200 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C180-I Industrial Engine

Rated Power: 180 HP @ 2200 RPM
Maximum Torque: 840 N·m @ 1500 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C325-III Industrial Engine

Rated Power: 325 HP @ 2200 RPM
Maximum Torque: 1037 N·m @ 2200 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C325-I Industrial Engine

Rated Power: 325 HP @ 2200 RPM
Maximum Torque: 1037 N·m @ 2200 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C290 Industrial Engine

Rated Power: 294 HP @ 2100 RPM
Maximum Torque: 980 N·m @ 2100 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C275-II Industrial Engine

Rated Power: 279 HP @ 2000 RPM
Maximum Torque: 980 N·m @ 2000 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C240-II Industrial Engine

Rated Power: 243 HP @ 2200 RPM
Maximum Torque: 777 N·m @ 2200 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C178 Industrial Engine

Rated Power: 181 HP @ 1850 RPM
Maximum Torque: 803 N·m @ 1400 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C220 Industrial Engine

Rated Power: 220 HP @ 2200 RPM
Maximum Torque: 950 N·m @ 1400 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C240 Industrial Engine

Rated Power: 240 HP @ 2200 RPM
Maximum Torque: 1180 N·m @ 1400 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C300 Industrial Engine

Rated Power: 300 HP @ 2000 RPM
Maximum Torque: 1268 N·m @ 1000 RPM
Fuel System: Weifu PW2000 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C325 Industrial Engine

Rated Power: 325 HP @ 2200 RPM
Maximum Torque: 1230 N.m @ 1400 RPM
Fuel System: Bosch P7100 / RQV-K Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

6LTAA8.9-C360 Industrial Engine

Rated Power: 360 HP @ 2200 RPM
Maximum Torque: 1400 N·m @ 1400 RPM
Fuel System: BYC P7100 / RSV Mech.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N / A

QSF2.8-C46 Industrial Engine

Rated Power: 46 BHP (34.5kW) @ 2500 RPM
Torque Peak: 103 lb-ft (140 N-m) @800 – 2300 RPM
Fuel System: HPCR
Aspiration: Naturally Aspirated
Emission Standard: EU Stage IIIA

QSF2.8-C48 Industrial Engine

Rated Power: 48 BHP (36.5kW) @ 2500 RPM
Torque Peak: 137 lb-ft (186 N-m) @ 1100 – 1500 RPM
Fuel System: HPCR
Aspiration: Naturally Aspirated
Emission Standard: EU Stage IIIA

QSF2.8-C49 Industrial Engine

Rated Power: 37 kW (49 HP) @ 2500 RPM
Torque Peak: 200 N-m (148 lb-ft) @ 1600 RPM
Fuel System: HPCR
Aspiration: Turbocharged Charge Air Cooled and EGR
Emission Standard: EU Stage IIIB

QSF2.8-C50 Industrial Engine

Rated Power: 37 kW (50 HP) @ 2500 RPM
Torque Peak: 190 N-m (140 lb-ft) @ 1600 RPM
Fuel System: HPCR
Aspiration: Turbocharged
Emission Standard: EU Stage IIIB

QSF2.8-C50-I Industrial Engine

Rated Power: 37 kW (50 HP) @ 2500 RPM
Torque Peak: 190 N-m (140 lb-ft) @ 1600 RPM
Fuel System: HPCR
Aspiration:Turbocharged
Emission Standard: EU Stage IIIB

QSF2.8-C58 Industrial Engine

Rated Power: 58 BHP (43kW) @ 2500 RPM
Torque Peak: 137 lb-ft (186 N-m) @ 1100 – 1500 RPM
Fuel System: HPCR
Aspiration: Naturally Aspirated
Emission Standard: EU Stage IIIA

QSF2.8-C60 Industrial Engine

Rated Power: 60 BHP (45kW) @ 2200 RPM
Max. Torque: 184 lb-ft (250 N-m) @ 1320 – 1700 RPM
Fuel System: HPCR
Aspiration: Turbocharged without CAC
Emission Standard: EU Stage IIIA

QSF2.8-C60-I Industrial Engine

Rated Power: 60 BHP (45kW) @ 2200 RPM
Torque Peak: 184 lb-ft (250 N-m) @ 1320 – 1700 RPM
Fuel System: HPCR
Aspiration: Turbocharged without CAC
Emission Standard: EU Stage IIIA

QSF2.8-C65 Industrial Engine

Rated Power: 48 kW (65 hp) @ 2500 RPM
Torque Peak: 270 N-m (199 lb-ft) @ 1600 RPM
Fuel System: HPCR
Aspiration: Turbocharged Charge Air Cooled and EGR
Emission Standard: EU Stage IIIB

QSF2.8-C65-I Industrial Engine

Rated Power: 49 kW (65 HP) @ 2500 RPM
Torque Peak: 230 N-m (170 lb-ft) @ 1600 RPM
Fuel System: HPCR
Aspiration: Turbocharged
Emission Standard: EU Stage IIIB

QSF2.8-C65-II Industrial Engine

Rated Power: 49 kW (65 HP) @ 2500 RPM
Torque Peak: 230 N-m (170 lb-ft) @ 1600 RPM
Fuel System: HPCR
Aspiration: Turbocharged
Emission Standard: EU Stage IIIB

QSF2.8-C72 Industrial Engine

Rated Power: 72 BHP (54kW) @ 2400 RPM
Max. Torque: 199 lb-ft (270 N-m) @ 1440 – 1800 RPM
Fuel System: HPCR
Aspiration: Turbocharged without CAC
Emission Standard: EU Stage IIIA

QSF2.8T-C72 Industrial Engine

Rated Power: 54 kW (72 HP) @ 2400 RPM
Torque Peak: 270 N-m (199 lb-ft) @ 1440 RPM
Fuel System: HPCR
Aspiration: Turbocharged
Emission Standard: EU Stage IIIA

QSF2.8-C73 Industrial Engine

Rated Power: 55 kW (73 HP) @ 2200 RPM
Torque Peak: 300 N-m (221 lb-ft) @ 1600 RPM
Fuel System: HPCR
Aspiration: Turbocharged Charge Air Cooled and EGR
Emission Standard: EU Stage IIIB

QSF2.8-C74 Industrial Engine

Rated Power: 55 kW (74 HP) @ 2500 RPM
Torque Peak: 300 N-m (221 lb-ft) @ 1600 RPM
Fuel System: HPCR
Aspiration: Turbocharged Charge Air Cooled and EGR
Emission Standard: EU Stage IIIB

QSF3.8-C104 Industrial Engine

Rated Power: 104 kW (139 HP) @ 2200 RPM
Torque Peak: 540 N-m (398 lb-ft) @ 1320 RPM
Fuel System: Bosch HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EU Stage IIIA

QSF3.8-C93 Industrial Engine

Rated Power: 93 kW (125 HP) @ 2200 RPM
Torque Peak: 500 N-m (369 lb-ft) @ 1320 RPM
Fuel System: Bosch HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EU Stage IIIA

QSF3.8-C74 Industrial Engine

Rated Power: 74 kW (99 HP) @ 2200 RPM
Torque Peak: 420 N-m (310 lb-ft) @ 1320 RPM
Fuel System: Bosch HPCR
Aspiration: Turbocharged and Charge Air Cooled
Emission Standard: EU Stage IIIA

QSF3.8-C86 Industrial Engine

Rated Power: 115 hp @ 2200 RPM
Max. Torque: 470 N.m @ 1320 RPM
Fuel System: Bosch HPCR
Aspiration: Turbocharged CAC
Emission Standard: EU Stage IIIA

QSB3.9-C110-30 Industrial Engine

Rated Power: 110 HP @ 2200 RPM
Max. Torque: 480 N.m @1600 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB3.9-C125-30 Industrial Engine

Rated Power: 125 HP @ 2200 RPM
Max. Torque: 480 N.m @1350 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB3.9-C130-31 Industrial Engine

Rated Power: 130 HP @ 2500 RPM
Max. Torque: 520 N.m @1600 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C109 Industrial Engine

Rated Power: 109 HP @ 2000 RPM
Max. Torque: 461 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C110A Industrial Engine

Rated Power: 110 HP @ 2200 RPM
Max. Torque: 488 N.m @ 1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C110B Industrial Engine

Rated Power: 110 HP @ 2200 RPM
Max. Torque: 488 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C110C Industrial Engine

Rated Power: 110 HP @ 2500 RPM
Max. Torque: 488 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C110D Industrial Engine

Rated Power: 110 HP @ 1800 RPM
Max. Torque: 488 N.m @1300 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C121 Industrial Engine

Rated Power: 121 HP @ 2500 RPM
Max. Torque: 470 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C128 Industrial Engine

Rated Power: 128 HP @ 2000 RPM
Max. Torque: 546 N.m @1400 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C130A Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 622 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C130B Industrial Engine

Rated Power: 130 HP @ 2000 RPM
Max. Torque: 620 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C130C Industrial Engine

Rated Power: 130 HP @ 1800 RPM
Max. Torque: 542 N.m @1400 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C130D Industrial Engine

Rated Power: 130 HP @ 2300 RPM
Max. Torque: 512 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C132 Industrial Engine

Rated Power: 132 HP @ 2000 RPM
Max. Torque: 499 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C139 Industrial Engine

Rated Power: 139 HP @ 2000 RPM
Max. Torque: 504 N.m @1800 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C140 Industrial Engine

Rated Power: 140 HP @ 2000 RPM
Max. Torque: 586 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C148 Industrial Engine

Rated Power: 148 HP @ 2300 RPM
Max. Torque: 598 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C160A Industrial Engine

Rated Power: 160 HP @ 2500 RPM
Max. Torque: 622 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C160B Industrial Engine

Rated Power: 160 HP @ 2400 RPM
Max. Torque: 624 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C160C Industrial Engine

Rated Power: 160 HP @ 2300 RPM
Max. Torque: 624 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB4.5-C160D Industrial Engine

Rated Power: 160 HP @ 2200 RPM
Max. Torque: 624 N.m @1500 RPM
Fuel System: Bosch Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB5.9-C160-30 Industrial Engine

Rated Power: 160 HP @ 2200 RPM
Max. Torque: 720 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB5.9-C130-30 Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 480 N.m @1350 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB5.9-C150-30 Industrial Engine

Rated Power: 150 HP@ 2000 RPM
Max. Torque: 615 N.m @ 1500 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB5.9-C180-30 Industrial Engine

Rated Power: 180 HP @ 2200 RPM
Max. Torque: 800 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB5.9-C180-31 Industrial Engine

Rated Power: 180 HP @ 2400 RPM
Max. Torque: 820 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB5.9-C210-30 Industrial Engine

Rated Power: 210 HP @ 2200 RPM
Max. Torque: 820 N.m @ 1400 RPM
Fuel System: HPCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: Euro Stage III

QSB6.7-C130 Industrial Engine

Rated Power: 130 HP @ 2200 RPM
Max. Torque: 580 N.m @ 1400 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

QSB6.7-C133 Industrial Engine

Rated Power: 133 HP @ 2200 RPM
Max. Torque: 584 N.m @ 1450 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

QSB6.7-C170 Industrial Engine

Rated Power: 170 HP @ 2000 RPM
Max. Torque: 656 N.m @ 1400 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

QSB6.7-C190 Industrial Engine

Rated Power: 190 HP @ 2200 RPM
Max. Torque: 931 N.m @ 1400 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

QSB6.7-C220 Industrial Engine

Rated Power: 220 HP @ 2200 RPM
Max. Torque: 949 N.m @ 1500 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

QSB6.7-C260 Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Max. Torque: 990 N.m @ 1500 RPM
Fuel System: Cummins MCRS
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III”

QSC8.3-C240-30 Industrial Engine

Rated Power: 152 HP @ 2200 RPM
Max. Torque: 1135 N.m @ 1350 RPM
Fuel System: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

QSC8.3-C260-30 Industrial Engine

Rated Power: 260 HP @ 2200 RPM
Max. Torque: 1135 N.m @ 1350 RPM
Fuel System: N/A
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage III

QSL8.9-C220-III Industrial Engine

Rated Power: 220 HP @ 2200 RPM
Max. Torque: 936 N.m @ 1500 RPM
Fuel System: CCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage 3A

QSL8.9-C325-III Industrial Engine

Rated Power: 325 HP @ 2100 RPM
Max. Torque: 1385 N.m @ 1500 RPM
Fuel System: CCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage 3A

QSL8.9-C340-III Industrial Engine

Rated Power: 340 HP @ 2100 RPM
Max. Torque: 1455N.m @ 1500 RPM
Fuel System: CCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage 3A

QSL8.9-C360-III Industrial Engine

Rated Power: 360 HP @ 2100 RPM
Max. Torque: 1500N.m @ 1500 RPM
Fuel System: CCR
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage 3A

QSM11-C290 Industrial Engine

Rated Power:290 HP @ 2100 RPM
Max. Torque: 1478 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C290-II Industrial Engine

Rated Power:290 HP @ 2100 RPM
Max. Torque: 1478 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C300 Industrial Engine

Rated Power: 300 HP @ 2100 RPM
Max. Torque: 1424 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C300-II Industrial Engine

Rated Power: 300 HP @ 2000 RPM
Max. Torque: 1575 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C300-III Industrial Engine

Rated Power: 300 HP @ 2100 RPM
Max. Torque: 1424 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: EU Stage IIIA

QSM11-C315 Industrial Engine

Rated Power: 315 HP @ 2100 RPM
Max. Torque: 1424 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage II

QSM11-C330 Industrial Engine

Rated Power: 330 HP @ 2100 RPM
Max. Torque: 1674 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: EU Stage IIIA

QSM11-C335 Industrial Engine

Rated Power: 335 HP @ 2100 RPM
Max. Torque: 1674 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C335-II Industrial Engine

Rated Power: 335 HP @ 2100 RPM
Max. Torque: 1674 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: T & CAC
Emission Standard: EU Stage IIIA

QSM11-C335-III Industrial Engine

Rated Power: 335 HP @ 2000 RPM
Max. Torque: 1790 N.m @ 1300 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: China Stage 3

QSM11-C335-IV Industrial Engine

Rated Power: 335 HP @ 2100 RPM
Max. Torque: 1674 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: EU Stage IIIA

QSM11-C335-V Industrial Engine

Rated Power: 335 HP @ 2100 RPM
Max. Torque: 1674 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: EU Stage IIIA

QSM11-C340 Industrial Engine

Rated Power: 340 HP @ 1800 RPM
Max. Torque: 1708 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C345 Industrial Engine

Rated Power: 345 HP @ 1900 RPM
Max. Torque: 1710 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: MEP Stage III

QSM11-C350A Industrial Engine

Rated Power: 350HP @ 2100RPM
Max. Torque: 1776N.m @ 1400RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C350B Industrial Engine

Rated Power: 350 HP @ 2000 RPM
Max. Torque: 1830 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C350-II Industrial Engine

Rated Power: 350 HP @ 2000 RPM
Max. Torque: 1830 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: EU Stage IIIA

QSM11-C360 Industrial Engine

Rated Power: 360 HP @ 1800 RPM
Max. Torque: 1708 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: EU Stage IIIA

QSM11-C360A Industrial Engine

Rated Power: 360 HP @ 1800 RPM
Max. Torque: 1708 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C360B Industrial Engine

Rated Power: 360 HP @ 2100 RPM
Max. Torque: 1830 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C375 Industrial Engine

Rated Power: 375 HP @ 2100 RPM
Max. Torque: 1898 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C375-II Industrial Engine

Rated Power: 375 HP @ 2000 RPM
Max. Torque: 1898 N.m @ 1300 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: China Stage 3

QSM11-C375-III Industrial Engine

Rated Power: 375 HP @ 2100 RPM
Max. Torque: 1898 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: EU Stage IIIA

QSM11-C385 Industrial Engine

Rated Power: 385 HP @ 2100 RPM
Max. Torque: 1424 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: EU Stage IIIA

QSM11-C400 Industrial Engine

Rated Power: 400 HP @ 2100 RPM
Max. Torque: 1898 N.m @ 1400 RPM
Fuel System: Celect Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: EU Stage IIIA

QSM11-C400-II Industrial Engine

Rated Power: 400 HP @ 2000 RPM
Max. Torque: 1898 N.m @ 1300 RPM
Fuel System: Celect Elec.
Aspiration: Turbocharged & CAC
Emission Standard: China MEP CS III
