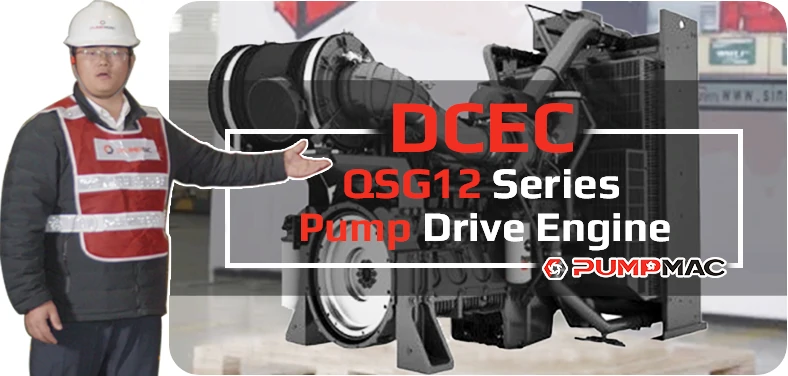

DCEC QSG12 Pump Drive Engine
DCEC QSG12 series pump drive engine is a 4-cylinders in line, 11.8 liters four-strokes engine with 132 mm bore and 144 mm stroke. DCEC QSG12 series pump drive engine equipped with Weifu (or BYC) fuel pump and provides both mechanical governor and electronic governor for customers to choose from.
The prime power range of DCEC QSG12 series pump drive engine is from 340 kW to 383 kW.
DCEC pump drive engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
DCEC QSG12 series electronic pump drive engine can reach upto EU Stage V emission standard, the number 30/40/50 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V. For different emission standard DCEC QSG12 series electronic pump drive engine, the engine itself are the same, the major different of different emission standard engine models are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard engine models, welcome to subscribe our website to get latest update information.
If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.
General Specifications of QSG12 Series
| Engine Type: | 6 Cylinders |
| Displacement: | 11.8 L |
| Rated Speed: | 1500 – 1800 RPM |
| Emission Standard: | Euro III |
| Fuel System: | HPCR |
| Standby Power: | 370 – 418 kW @ 1500 – 1800 RPM |
| Prime Power: | 340 – 383 kW @ 1500 – 1800 RPM |
| Wet Weight: | 1110 kg |
| Bore * Stroke: | 132 mm * 144 mm |
| Packing Size(L * W * H): | 2293 mm * 1083 mm * 1705 mm |
DCEC QSG12 Series Pump Drive Engine
This list including all models of DCEC QSG12 Series Pump Drive Engine.
Click here to find pump engines by type (Fuel System & Engine Speed).
DCEC QSG12-G4 Pump Drive Engine
Rated Power: 383 kW @ 1800RPM
Fuel Pump: HPCR
Governor: Electronic
Aspiration: Air-air Charge Cooled
Emission Standard: Euro III
DCEC QSG12-G3 Pump Drive Engine
Rated Power: 340 kW @ 1800RPM
Fuel Pump: HPCR
Governor: Electronic
Aspiration: Air-air Charge Cooled
Emission Standard: Euro III
