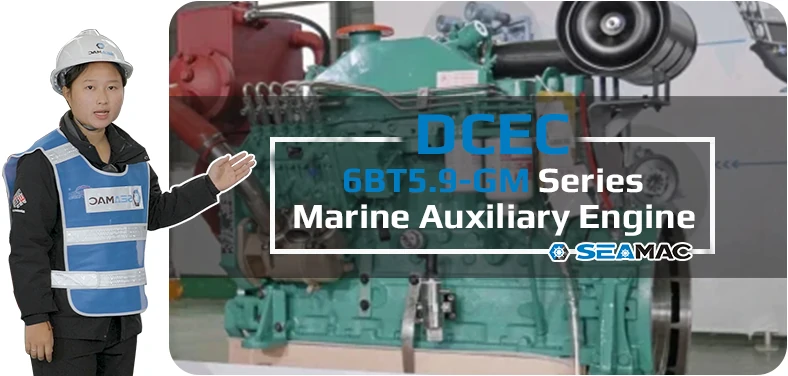

DCEC 6BT5.9 Marine Auxiliary Engine
DCEC 6BT5.9 series marine auxiliary engine is a 6-cylinders in line, 5.9 liters four-strokes engine with 102 mm bore and 120 mm stroke. DCEC 6BT5.9 series marine auxiliary engine equipped with BYC fuel pump and GAC electronic governor.
The prime power range for 50 Hz generator set (1500 RPM) of DCEC 6BT5.9 series marine auxiliary engine is from 80 kW to 115 kW. The prime power range for 60 Hz generator set (1800 RPM) of DCEC 6BT5.9 series marine auxiliary engine is from 80 kW to 132 kW.
DCEC marine auxiliary engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. DCEC provides both heat exchanger cooling and radiator cooling marine auxiliary engines, which mainly using for marine main generator and marine emergency generator. For the emergency generator set applications, we provide additional options for customers such as dual starter motor system (we provide both electric and spring starter motor for customers), which are required by most of international classifications. All of DCEC marine auxiliary engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.
General Specifications of 6BT5.9 Series
Engine Type: | 6 Cylinders, in Line |
Displacement: | 5.9 L |
Bore * Stroke: | 102 mm*120 mm |
Advertised Power: | 80 – 132 kW @ 1500 – 1800 RPM |
Peak Torque: | 212 g – 219/ kw.h @ 1500 – 1800 RPM |
Rated Speed: | 1500 – 1800 RPM |
Emissision: | Euro ll |
Aspiration Method: | Turbocharged & Air-Air Intercooler |
Wet Weight: | 441 – 426 kg |
Dimission Standards: | 1182 mm * 761 mm * 1127 mm |
DCEC 6BT5.9 Marine Auxiliary Engine Catalogue | |||||||
Engine Model |
Rated Power |
Aspiration |
Engine Model |
Rated Power |
Aspiration |
||
6BT5.9-GM80 | 80 kW @ 1500 RPM | Turbocharged | 6BT5.9-GM83 | 83 kW @ 1500RPM | Turbocharged | ||
6BT5.9-GM100 | 110 kW @ 1800RPM | Turbocharged | 6BTA5.9-GM100 | 100 kW @ 1500RPM | Turbocharged & Water-Air Intercooler | ||
6BTA5.9-GM120 | 132 kW @ 1800RPM | Turbocharged & Water-Air Intercooler | 6BTAA5.9-GM115 | 127 kW @ 1500RPM | Turbocharged & Air-Air Intercooler | ||
——END—— |
DCEC 6BT5.9 Series Marine Auxiliary Engine
This list including all models of DCEC 6BT5.9 Series Marine Auxiliary Engine.
Click here to find marine engines by type (Fuel System & Power Range).
6BT5.9-GM80 Auxiliary Engine
Rated Power: 80 kW @ 1500 RPM
Max. Torque: 216 g / kw.h @ 1500 RPM
Fuel Pump: BYC PB Pump
Governor: GAC 24 V Mech.
Aspiration: Turbocharger
6BT5.9-GM83 Auxiliary Engine
Rated Power: 83 kW @ 1500RPM
Max. Torque: 216 g / kw.h @ 1500 RPM
Fuel Pump: BYC A Pump
Governor: GAC Mech.
Aspiration: Turbocharger
6BT5.9-GM100 Auxiliary Engine
Rated Power: 100 kW @ 1800RPM
Max. Torque: 219 g / kw.h @ 1800RPM
Fuel Pump: BYC A Pump
Governor: GAC Mech.
Aspiration: Turbocharger
6BTA5.9-GM100 Auxiliary Engine
Rated Power: 100 kW @ 1500RPM
Max. Torque: 213 g / kw.h @ 1500 RPM
Fuel Pump: BYC A Pump
Governor: GAC Mech.
Aspiration: TC & Water-Air Intercooler
6BTA5.9-GM120 Auxiliary Engine
Rated Power: 120 kW @ 1800RPM
Max. Torque: 213 g / kw.h @ 1800RPM
Fuel Pump: BYC A Pump
Governor: GAC Mech.
Aspiration: TC & Water-Air Intercooler
6BTAA5.9-GM115 Auxiliary Engine
Rated Power: 115 kW @ 1500RPM
Max. Torque: 212 g / kw.h @ 1500 RPM
Fuel Pump: BYC PB Pump
Governor: GAC Mech.
Aspiration: TC & Air-Air Intercooler
