DCEC L8.9CMII211G Marine Auxiliary Engine

DCEC L8.9CMII211G Marine Auxiliary Engine is a 6-cylinders, 8.9 liters four-strokes engine with 114mm bore and 145mm stroke.

Equipped with Weifu AD fuel pump and RSV governor, engine comes with turbocharger.

The prime power at 1500RPM of DCEC L8.9CMII211G marine auxiliary engine is 155kW.

Based on standard DCEC marine auxiliary engines, SeaMac provides both heat exchanger cooling and keel cooling marine auxiliary engines, we also provide complete propulsion system that including marine engine, gearbox, shaft, propeller as complete power system. SeaMac provides full life cycle services for all our customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

All of DCEC marine auxiliary engine are comes with dry type exhaust system, which means dry type exhaust manifold and dry type turbocharger, SeaMac provides upgrading services for water-cooled exhaust system, which modify dry type exhaust system into water-cooled exhaust system, which are quite important and often requested by passenger boat projects.

Advantages of L8.9CMII211G Marine Engine

Leading design and excellent manufacturing technology make the engine more reliable and durable, suitable for high-strength, heavy-duty work under severe working conditions.
The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are about 40% less than other similar engines, and the failure rate is greatly reduced.
The cylinder bore adopts a platform mesh honing design, the perfect geometric structure effectively prevents oil leakage, and the use of advanced technologies such as new piston ring components and gasket crimping and molding reduces oil loss.
Synchronized with the advanced design and sophisticated manufacturing of CMS in the United States, it is suitable for harsh working conditions and has strong high-intensity and heavy-duty operating capabilities.

Technical Specifications

Engine Model:	L8.9CMII211G
Engine Type:	6 Cylinders
Displacement:	8.9 L
Rated Speed:	1500 RPM
Rated Power / Speed:	155 kW @ 1500 RPM
Peak Torque:	987 N.m @ 1500 RPM
Classification:	N/A
Aspiration Method:	Turbocharged/Aftercooled
Emission Standard:	N / A
*BoreStroke:**	114 mm * 145 mm
*Packing Size(LWH):*	N / A
Wet Weight:	877 kg
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

Coming Soon

Engine Model	Peak Torque	Rated Power	Fuel System	Aspiration
L8.9CMII211G	987 N.m @ 1500 RPM	155 kW @ 1500 RPM	HPCR	Turbocharged/Aftercooled
L8.9CMII272G	1273 N.m @ 1500 RPM	200 kW @ 1500 RPM	HPCR	Turbocharged/Aftercooled
——END——

General Infomation of DCEC L8.9CMII211G Marine Auxiliary Engine
Engine Model	L8.9CMII211G	Curve Number	FR96906
Engine Configuration	D563033MX03	CPL Code	CPL5570
Date	16-Apr-19	Displacement	8.9 liter
Bore*Stroke	114 mm * 145 mm	Advertised Power	155 kW [208 hp] @ 1500 rpm
Fuel System	HPCR	Aspiration	Turbocharged/Aftercooled
Cylinders	6	Exhaust Type	Dry
—END—

Engine Speed	Overload Capacity		Prime Power		Continuous Power
RPM	kWm	BHP	kWm	BHP	kWm	BHP
1500	171	229	155	208	N.A.	N.A.
——END——

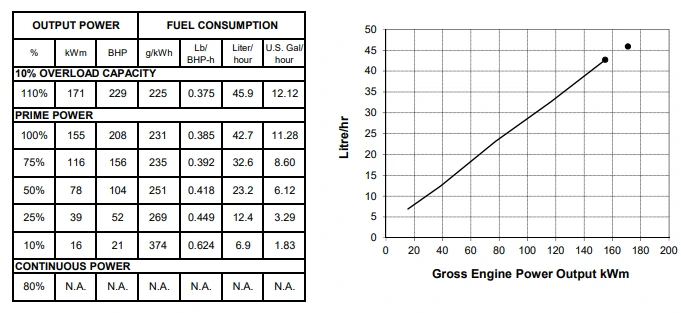

Performance Data of DCEC L8.9CMII211G Marine Auxiliary Engine
	Prime Power	Overload
Rated Engine Power	155 kW [208 hp]	171 kW [229 hp]
Governed Engine Speed	1500 RPM
Rated HP Production Tolerance	3 ±%
Rated Engine Torque	987 Nꞏm [728 lbꞏft]	1087 Nꞏm [802 lbꞏft]
Low Idle Speed Range Minimum	750 rpm
Low Idle Speed Range Maximum	800 rpm
Brake Mean Effective Pressure	1393 kPa [202 psi]	1538 kPa [223 psi]
Compression Ratio	17.3:1
Piston Speed	7.3 m/sec [1427.5 ft/min]
Firing Order	1-5-3-6-2-4
Friction Power	12 kW [16 hp]
Steady State Stability Band at Constant Load	0.25%
Weight Dry – Engine Only	877 kg [1933 lb]
Weight Dry – Engine With Heat Exchanger	1001 kg [2207 lb]
1 m sound pressure level – GB/T1859	< 93 dB
—END—

Jacket Water Aftercooled Engines (JWAC)
	Prime Power	Overload
Coolant Flow to Main Cooler (with open thermostat)	220 l/min [58 gal/min]
Standard Thermostat Operating Range Start to open	71 °C [160 °F]
Standard Thermostat Operating Range Full open	83 °C [182 °F]
Heat Rejection to Engine Coolant³	100 kW [5692 Btu/min]	114 kW [6488 Btu/min]
—END—

Emissions (in accordance with ISO 8178 Cycle D2)
	Prime Power	Overload
NOx (Oxides of Nitrogen)	4.650 g/kwꞏhr
HC (Hydrocarbons)	0.450 g/kwꞏhr
CO (Carbon Monoxide)	0.100 g/kwꞏhr
PM (Particulate Matter)	0.083 g/kwꞏhr
—END—

Electrical and Start System
	Prime Power	Overload
Voltage	24 V
Cold Soak at -18°C (0°F) -Cold Cranking Amperes Rating	750 CCA
Maximum Allowable Resistance of Starting Circuit	2 Ohms
Min. start temperature without cold starting aid	-12 °C [-10 °F]
—END—

System Performance Data of DCEC L8.9CMII211G Marine Auxiliary Engine
		Prime Power	Overload
LubricationSystem	Max. Allowable Oil Temperature (Sump)	124 °C [255 °F]
	Oil Pan Capacity (OP9582)
	Low/High	18.9 [22.7] l/l
	Min. Oil Pressure at idle speed	69 kPa [10 psi]
	Maximum Operational Angularity of Oil Pan	35 degree

Fuel System	Approximate Fuel Flow to Pump	122 l/hr [32.17 gal/hr]
	Maximum Allowable Fuel Supply to Pump Temperature	70 °C [158 °F]
	Approximate Fuel Flow Return to Tank	79 l/hr [20.88 gal/hr]
	Maximum Allowable Restriction to Fuel Pump
	Clean Filter	16 kPa [2.3 psi]
	Dirty Filter	30 kPa [4.4 psi]
Air System
	Intake Manifold Pressure	176 kPa [52 in Hg]	188 kPa [55.5 in Hg]
	Intake Air Flow	208 l/sec [440 cfm]	216 l/sec [457 cfm]
	Heat Rejection to Ambient	23 kW [1309 Btu/min]

Exhaust System	Exhaust Gas Flow	569 l/sec [1205 cfm]	606 l/sec [1284 cfm]
	Exhaust Gas Temperature	513 °C [954 °F]	530 °C [986 °F]
	Max. Exhaust Pressure	10 kPa [3 in Hg]
Cooling System
	Sea Water Pump flow4 ( Discharge Restriction Pressure 40 kPa )	6.5 m3 /hr
	Pressure Cap Rating (With Heat Exchanger Option)	48 kPa [7 psi]
	Max. Pressure Drop Across Any External Cooling System Circuit	34 kPa [5 psi]
—END—

Scopes of Supply of DCEC L8.9CMII211G Marine Auxiliary Engine

Air Intake System	1. Air Intake Manifold	Exhuast System	1. Exhuast Manifold
	2. Air Filter		2. Turbocharger
	3. N / A		3. Exhuast Elbow
Starting System	1. Starter Motor	Charging System	1. Charging Alternator
Starting System	2. Starter Rely	Charging System	2. N / A
Lubricating System	1. Oil Pump	Fuel System	1. Fuel Transfer Pump
	2. Oil Filter		2. High-Pressure Fuel Pump
	3. N / A		3. Machanical Governor
	4. N / A		4. Fuel Filter
Engine Shut-Down System	1. Engine Fuel Shut-Off Solenoid	Power Output System	1. Flywheel
Engine Shut-Down System	2. N / A	Power Output System	2. Standard Flywheel Housing
——END——

Optional Accessories of DCEC DCEC L8.9CMII211G Marine Auxiliary Engine
Air Intake System	1. Air Intake Pre-Heater	Exhuast System	1. Muffler & Bellows
	2. Air Intake Pre-Filter		2. Flame Trap
	3. Air Filter Alarm System		3. Spark Arrestor Type Muffler & Bellows
	4. N / A		4. DPF System

Fuel System	1. Coarse Filter	Engine Auiliary Accessories	1. Hydraulic Oil Pump
Fuel System	2. Fuel Pre-Heater	Engine Auiliary Accessories	2. Hydraulic Cluch

Starting System	1. Manual Magnetic DC Contactor	Cooling System	1. Engine Monitor
	2. Dual Ears Flywheel Housing		2. Engine Protection System With Alarm System
	3. Spring Starter Motor		3. Machanical Engine Control Lever Syste
	4. Air Starter Motor		4. Electric Engine Control Lever System
	5. Hydraulic Starter Motor		5. N / A
	6. Manual Magnetic DC Contactor		6. N / A

Power Output System	1. Gear Reduction Gearbox	Cooling System	1. Coolant Pre-Heater
Power Output System	2. Reverse Gear Box	Cooling System	2. Jacket Water Heater

Lubricating System	1. Oil Pre-Heater	Engine Mounting System	1. Shock Absorber Pad
——END——

Committed to providing reliable premium propulsion system and power system for all kinds of ships around the world, SeaMac is a sub-brand of EMAC group that focused on maritime application.
SeaMac’s ranges of products mainly inclduing marine main engine, marine gearbox, marine propellers, marine control lever system, marine auxiliary engine, marine generator set and emergency generator set.
For more information of our marine proplusion and power system products, you are welcome to visit SeaMac homepage: www.seamac.com

Modifiable components of DCEC L8.9CMII211G Marine Auxiliary Engine

Air Intake System	1. Installation Position of Air Filter	Starting System	1. 12V Starter Motor for 12V Electric System
	2. Upgrade to Heavy-Duty Type Air Fitler		2. Upgrading to Specified Brand and Speicifications of Starter Motor
Exhuast System	1. Can Modify Installation Position and Direction of Turbocharger	Charging System	1. 12V Charging Alternator for 12V Electric System
	2. Water-Cooled Exhuast Manifold		2. Explosion-Proof Charging Alternator
	3. Water-Cooled Turbocharger		3. Upgrading to Specified Brand and Speicifications of Charging Alternator
Fuel System	1. Upgrade to Fuel Fitler That Integrated with Fuel Transfer Pump and Fuel Pre-Hearter	Engine Auiliary Accessories	1. Additional Auxiliary Systems Can Be Added for Special Applications
Engine Shut-Down System	1. 12V Solenoid for 12V Electric System	Cooling System	1. Can Modify Engine Into Keel Cooling System
	2. Explosion-Proof Solenoid		2. N / A
Lubricating System	1. Oil Pan Position	Power Output System	1. Can Modify Size of Flywheel Housing and Flywheel
	2. Number of Dipstick		2. Dual-Ear Flywheel Housing (For Twin-Starter System)
	3. Position of Dipstick Can Choose from 6 Positions		3. Some of Models Can Modify Flywheel Housing Into PTO Integrated Type
	4. Can Modify Oil Filter to Be Remote Installation		4. Engine Have Connecting Port of PTOs, That Able to Provide Power Output
Engine Mounting System	1. Can Modify Engine Mouting Bracket
