Rated Power: 163 kW @ 1500RPM
Fuel Pump: BYC PB Pump
Governor: RSV Mech.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A

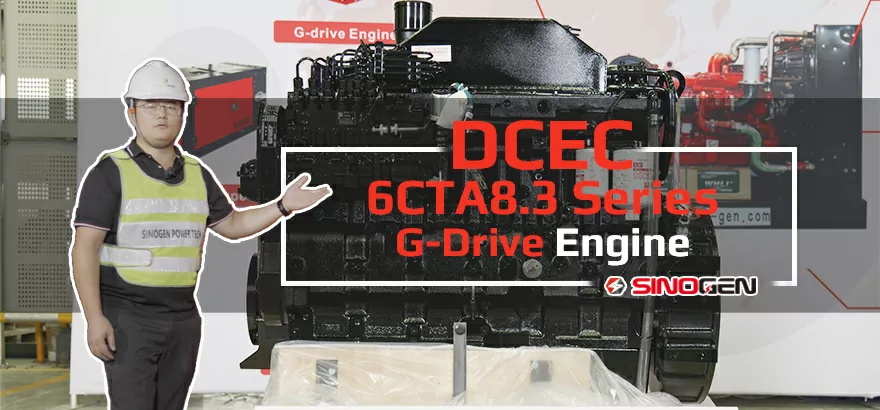

DCEC 6CTA8.3 Generator Drive Engine
DCEC 6CTA8.3 series generator drive engine is a 6-cylinders in line,8.3 liter four-strokes engine with 114 mm bore and 135 mm stroke. DCEC 6CTA8.3 series generator drive engine equipped with Weifu(or BYC) fuel pump and provides both mechanical governor and electronic governor for customers to choose from.
The power range for 50 Hz generator set (1500 RPM) of DCEC 6CTA8.3 series generator drive engine is from 163 kW to 231 kW. The power range for 60 Hz generator set (1800 RPM) of DCEC 6CTA8.3 series generator drive engine is from 170 kW to 263 kW.
DCEC generator drive engines have different configurations which have different power output, with code T in the engine model name means turbocharged engine, code TA in the engine model means turbocharge with water-air intercooler and code TAA in the engine model means turbocharge with air-air intercooler. As part of EMAC, SinoGen also provide complete power supply solutions that powered by DCEC, our ranges of products including open type generator set, silence type generator set, super silence type generator set, mobile trailer, complete power truck and complete power car for railways applications. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
General Specifications of 6CTA8.3 Series
| Engine Type: | 6 Cylinders |
| Displacement: | 8.3 L |
| Rated Speed: | 1500 – 1800 RPM |
| Emission Standard: | Euro II |
| Fuel System: | Direct injection |
| Standby Power: | 180 – 231 kW @ 1500 – 1800 RPM |
| Prime Power: | 163 – 190 kW @ 1500 – 1800 RPM |
| Bore * Storke: | 114 mm * 135 mm |
| Wet Weight: | 637 – 852 kg |
| Packing Size(L * W * H): | 1625 mm * 790 mm * 1265 mm |
| DCEC 6CTA8.3 G – Drive Engine Catalogue | |||||||
Engine Model |
Prime Power |
Governor Type |
Engine Model |
Prime Power |
Governor Type |
||
| 6CTA8.3-G1 | 163 kW @ 1500 RPM | RSV Mechanical Governor | 6CTA8.3-G2 -A | 163 kW @ 1500 RPM | GAC Electronic Governor | ||
| 6CTA8.3-G2-B | 170 kW @ 1800 RPM | GAC Electronic Governor | 6CTAA8.3-G2-A | 183 kW @ 1500 RPM | Electronic Governor | ||
| 6CTAA8.3-G2-B | 190 kW @ 1800 RPM | Electronic Governor | 6CTAA8.3-G9-A | N/A | Electronic Governor | ||
| 6CTAA8.3-G9-B | N/A | Electronic Governor | |||||
| ——END—— | |||||||
Engine Model
Rated Power
Engine Model
Rated Power
Engine Model
Rated
DCEC 6CTA8.3 Series G-Drive Engine
This list including all models of DCEC 6CTA8.3 Series G-Drive Engine.
Click here to find G-drive engines by type (Fuel System & Engine Speed).
6CTA8.3-G2-A G-Drive Engine
Rated Power: 163 kW @ 1500RPM
Fuel Pump: BYC PB Pump
Governor: GAC Elec.
Aspiration: TC & Water-Air Intercooler
Emission Standard: N/A
6CTA8.3-G2-B G-Drive Engine
Rated Power: 170 kW @ 1800RPM
Fuel Pump:BYC PB Pump / GAC Electronic Governor
Governor Regulation:≤3%
Aspiration: Turbocharged & Water-Air Intercooler
Emission Standard: N/A
6CTAA8.3-G2-A G-Drive Engine
Rated Power: 183 kW @ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A
6CTAA8.3-G2-B G-Drive Engine
Rated Power: 190 kW @ 1800RPM
Fuel Pump:BYC P7100 Pump
Governor: Elec.
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: N/A
6CTAA8.3-G9-A G-Drive Engine
Rated Power: 183 kW @ 1500RPM
Fuel Pump: BYC P7100 Pump
Governor: Elec.
Aspiration: TC & Air-Air Intercooler
Emission Standard: N/A
6CTAA8.3-G9-B G-Drive Engine
Rated Power: 231 kW @ 1800RPM
Fuel Pump:BYC P7100 Pump / Electronic
Governor Regulation:≤5%
Aspiration:Turbocharged & Air-Air Intercooler
Emission Standard: N/A
